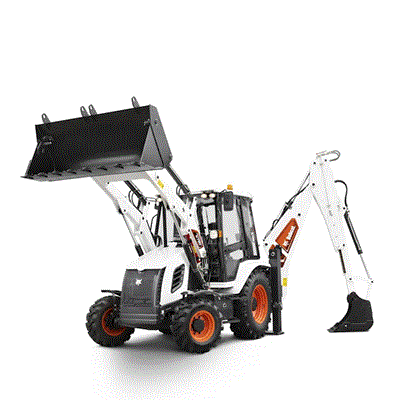

Bobcat Backhoe Loader B730M | 7.8 ton

Description

Bobcat Backhoe Loader B730M | 7.8 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Bobcat Backhoe Loader B730M | 7.8 ton

Bobcat Backhoe Loader B730M | 7.8 ton, Specifications unit

Engine

Power – Net : 68.5 kW
Model : Bobcat
Emissions : Engine meets U.S. EPA Tier 2/EU Stage II equivalent emission standards.
Rated Power (Standard) – 2,200 rpm – Gross – ISO 14396 : 68.5 kW
Net Peak Power Rating @ 2,200 rpm – SAE J1349 : 66.4
Torque Rise – 1,200 rpm – Net : 38
Maximum Torque – 1,400 rpm : 394 N·m
Bore : 105 mm
Stroke : 127 mm

Weights

Operating Weight – Nominal : 8425 kg
Operating Weight – Maximum : 11000 kg
Operating Weight : 8425 kg

Backhoe

Dig Depth – Standard : 4277 mm

Transmission

Note Travel speeds of backhoe loader at full throttle, when equipped with 500/70-24 rear tires.
lass=”yoast-text-mark” />>Power-Shift Transmission – Optional – Reverse – 3rd : 27 km/h.

Power-Shift Transmission

Optional – Forward -1st : 5.9 km/h  – 2nd : 9.4 km/h,1st : 5.9 km/h – 2nd : 12 km/h.
>Forward – 4th : 40 km/h – 3rd : 20 km/h, 3rd : 21 km/h – 2nd : 9.1 km/h, 1st : 5.5 km/h,
Reverse – 4th : 38 km/h.1st : 5.5 km/h – 3rd : 21 km/h, 2nd : 9.1 km/h, Forward – 4th : 38 km/h

Axle Ratings

Rear Axle – Dynamic 10000 kg
Rear Axle – Static 26500 kg
Front Axle, AWD – Dynamic 9000 kg
Front Axle, AWD – Static 23500 kg

Hydraulic System

Pump Type Variable-flow, Axial Piston
Type : Closed Center
System Pressure – Loader : 23000 kPa<br />System Pressure – Backhoe : 23000 kPa
Pump Capacity at 2,200 rpm : 132 l/min

Steering System

Turning Circle – (inner wheel not braked) – Outside Front Wheels 8.205 m
Power Steering : Hydrostatic
Stroke : 106 mm
Bore : 65 mm.

Turning Circle – (inner wheel not braked) – Outside Widest Loader Bucket : 10.745 m
Type : Front Wheel Steering.

/>Axle Oscillation : 11°
Rod Diameter : 40 mm
Cylinder : One Double-Acting

Service Refill Capacities

Hydraulic System : 95 l
Engine Oil – With Filter : 9 l

Hydraulic Tank : 42 l
Diesel Exhaust Fluid (DEF) : 19 l

Cooling System with Air Conditioning : 18 l
Rear Axle : 16 l
Fuel Tank : 160 l

Rear Axle – Planetaries : 1.7 l
Transmission – Power Shuttle – AWD : 18 l

Transmission – Power Shift – AWD : 19 l
Front Axle (AWD) : 11 l
Front Axle (AWD) – Planetaries : 0.7 l

Sustainability

Recyclability 92%
