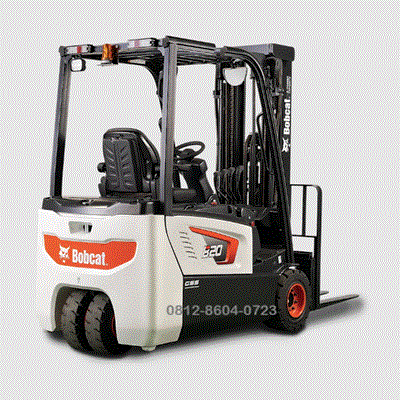

Bobcat Forklift B20T | 2 ton

Description

Bobcat Forklift B20T | 2 ton
BELIALAT.COM support penjualan unit, parts, service, rental, maintenance contract, overhaul, reconditioned Bobcat Forklift B20T | 2 ton

Bobcat Forklift B20T | 2 ton

Excellent Visibility

The B20SU-9 offers excellent forward and upper visibility with its
precisely designed overhead guard (OHG) profile, plus an optimized
bar thickness and arrangement designed for strength and an
enhanced view. The forklift has hydraulic hoses and mast chains,
which are strategically placed to provide enhanced visibility. LED
work lights are brighter for improved vision in low light situations,
and bright blue spotlights help to make other workers aware of
your location.

Reliable AC System

The Bobcat AC system ensures quick and powerful acceleration plus
smooth, continuous travel for maximized productivity.

Reliable Drive and Hydraulic Motors

Ruggedly designed and built, the individually controlled drive
motors and drive units provide essential reliability for the job.
The industry-proven AC drive system, motors and controller
enable greater productivity with precise handling along with
smooth, responsive acceleration and lifting.

Hydraulic Steer Axle Mechanism

The B20SU-9 steer axle design is industry proven and extremely
durable, providing long life and lower operating costs.

Dependable Controllers

Curtis® AC controllers provide an unbeatable combination of
power, performance and functionality. An IP65-rated controller
protects them from dust, debris and liquids.

Operator Comfort

The comfortable operator’s compartment includes conveniently
located controls and a large, fully adjustable armrest. A padded
backrest with lumbar support and grab handle, plus a bright,
easy-to-read display, keep operators comfortable and productive.

Auto Tilt Leveling

Angle sensors return the mast back to the vertical
position automatically.

Ergonomic Multi-Function Joystick Control

The instinctive control handle provides smooth, proportional control
of all the truck’s inputs. The ability to operate multiple functions
simultaneously increases overall productivity.

SPECIFICATIONS B20T

Capacity 4000 lb. (2000 kg)
Battery Compartment 20.5 in. (521 mm).

Load Center 24.0 in. (610 mm)
System Voltage 36V.

Operator Type Standing
Tire Type Cushion.

Wheels, Load/Caster (x=Drive) 2x/2 (Dual)
Total Service Weight 9325 lb. (4230 kg).

Axle Load at Loaded (Front/Rear) 11,955 lb. (5425 kg) / 1356 lb. (615 kg)
Axle Load at Unloaded (Front/Rear) 4870 lb. (2210 kg) / 4455 lb. (2020 kg).

Overhead Guard Height 88.0 in. (2235 mm)
Wheelbase 48.0 in. (1220 mm).

Tread Width Front 35.1 in. (892.5 mm)
Tread Width Rear 6.7 in. (170 mm).

Outside Turning Radius 57.5 in. (1460 mm)
Tilt Angle Forward/Backward 5°/5°
Fork Size (T x W x L) 1.5 x 3.9 x 41.3 in. (40 x 100 x 1050 mm)
