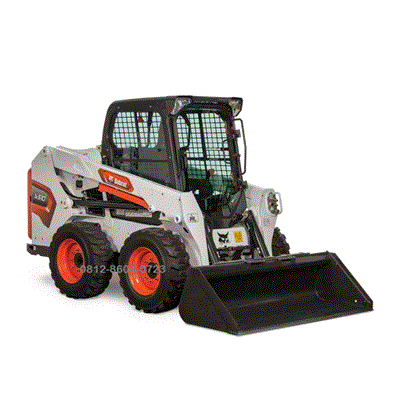

Bobcat Skid Loader S510 | 812 kg

Description

Bobcat Skid Loader S510 | 812 kg

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Bobcat Skid Loader S510 | 812 kg

Specification unit Bobcat Skid Loader S510 | 812 kg

PERFORMANCE SPECS

Rated Operating Capacity (ROC) (35% of tipping load)
ROC (50% of tipping load) : 1790 lb. (812 kg)
ROC With (optional 200 lb., 90 kg) : 2023 lb. (917 kg)
Tipping Load : 3754 lb. (1702 kg)
Height to Bucket Hinge Pin : 114.5 in. (2908 mm)
Lift Arm Path : Radius

SIZE AND SPEED

Operating Weight : 6208 lb. (2816 kg)
Width With Bucket : 68.0 in. (1727 mm)
Height With Cab : 77.8 in. (1976 mm)
Travel Speed – Low Range : 7.6 mph (12.3 km/hr.)
Travel Speed – High Range (optional 2-Speed travel) : 11.0 mph (17.3 km/hr.)

ENGINE

Emissions Tier (EPA) : Tier 4
Horsepower : 55.0 hp (41.0 kW)
Type : Turbo Diesel
Fuel Tank Capacity : 24.8 gal. (93.7 L)
Horsepower Management : Included with SJC Option

TIRES

Bobcat Heavy Duty : Std
Bobcat Standard Duty : –
Bobcat Superfloat Duty : –

TRACKS / UNDERCARRIAGE

Track Width – Standard : –
Track Width – Optional : –
Ground Pressure (with standard tracks) : –
Ground Pressure (with optional tracks) : –
Length of Track on Ground : –
Roller Suspension Undercarriage : –
Grease Cylinder Track Tensioning : –

CONTROL OPTIONS

Bobcat Standard (foot pedals/steering levers) : Std
Selectable Joystick Controls (SJC) : opt
Radio Remote Control (SJC required) : opt

MACHINE FEATURES

2-Speed Travel : Std
Automatic Ride Control : Opt
Back-Up Alarm and Horn : Std
Bobcat Interlock Control System (BICS™) : Std
Cab With Heat : Opt
Cab With Heat and Air Conditioning : Opt
Heated Cloth Air-Ride Seat : –*
Hydraulic Bucket Positioning : Opt
Front and Rear Work Lights : Std
Mechanical Suspension Seat : Std
Radio : –*
Reversing Fan : –*
ROPS/FOPS Approved Cab Structure : Std
Deluxe Instrumentation : –*
Side Lighting Kit : –*
Opt Sound Reduction Package : –*

FEATURES FOR ATTCHMENT

Attachment Control : Opt
Bob-Tach Mounting System : Std
Power Bob-Tach System : Opt
Fingertip Auxiliary Hydraulics Control : Std
Hydraulic System Pressure : 3550 psi (24.4 MPa)
Hydraulic Standard Flow : 17.1 gpm (64.7 L/min.)
Hydraulic High Flow : –
Pressure Release Hydraulic Quick Couplers : Std
Speed Management : Included with SJC Option
