Bobcat Skid Loader S590 | 907 kg
Bobcat Skid Loader S590 | 907 kg
Operational & Capacity
The S590’s vertical lift path makes it ideal for loading high-sided trucks and stacking pallets.
Rated Operating Capacity (ISO): 907 kg (2,000 lbs).
Tipping Load: 1,814 kg (4,000 lbs).
Operating Weight: 3,069 kg (6,765 lbs).
Travel Speed (Low): 11.2 km/h (7 mph).
Travel Speed (High – Optional): 18.4 km/h (11.4 mph).
Description
Bobcat Skid Loader S590 | 907 kg
BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Bobcat Skid Loader S590 | 907 kg

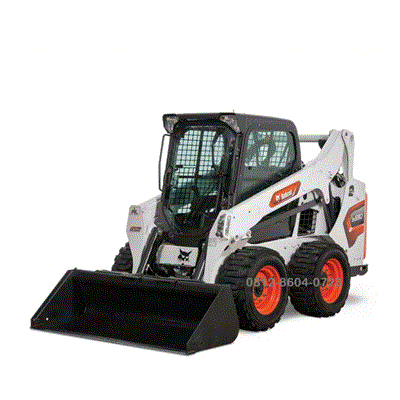

The Bobcat S590 is a versatile, vertical-lift-path skid steer loader known for its balance of power and reach.
The specific configuration with a 907 kg (2,000 lbs) Rated Operating Capacity (ROC) is a common standard, though some regional or newer Tier 4 models list an ROC of up to 998 kg.
Below are the detailed technical specifications for the 907 kg ROC unit:
Engine Performance
The S590 is typically powered by a reliable Bobcat or Kubota diesel engine designed for high torque at low RPMs.
Feature Specification .
Engine ModelBobcat D24 / Kubota V2607 (Stage IV / Tier 4).
Horsepower 68 hp (50.7 kW) @ 2600 RPM.
Torque 255.5 Nm
Fuel Tank Capacity 93.7 L (24.8 gal)
Cooling System Liquid-cooled.
Operational & Capacity
The S590’s vertical lift path makes it ideal for loading high-sided trucks and stacking pallets.
Rated Operating Capacity (ISO): 907 kg (2,000 lbs).
Tipping Load: 1,814 kg (4,000 lbs).
Operating Weight: 3,069 kg (6,765 lbs).
Travel Speed (Low): 11.2 km/h (7 mph).
Travel Speed (High – Optional): 18.4 km/h (11.4 mph).
Hydraulic System
Designed to handle a wide range of Bobcat attachments like augers, breakers, and grapples.
Standard Pump Flow: 64.7 L/min (17.1 gpm).
High Flow (Optional): 101.1 L/min (26.7 gpm).
System Relief @ Couplers: 245 bar (3,500 psi).
Dimensions
Measurement Value.
Length (with standard bucket) 3,378 mm
Width (with bucket) 1,880 mm.
Height to Bucket Hinge Pin 3,023 mm (Max lift height).
Height to Top of Cab 1,972 mm.
Wheelbase 1,082 mm.
Turning Radius 2,024 mm.
Key Features
Vertical Lift Path: Provides more reach at full lift height compared to radius lift models.
Non-DPF Engine: Many modern S590 units meet emissions standards without a Diesel Particulate Filter, reducing maintenance downtime.
Cab Comfort: Features like pressurized cabs, air conditioning, and Selectable Joystick Controls (SJC) are often available as options.
