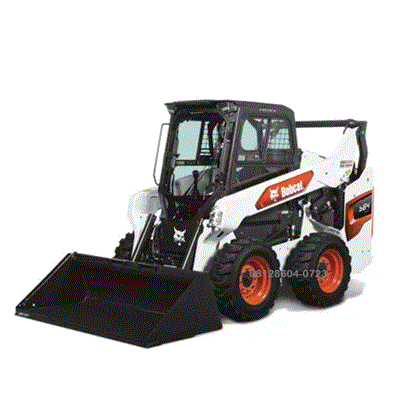

Bobcat Skid Loader S64 | 1 ton

The Bobcat S64 is part of the R-Series lineup and is a high-performance, vertical-lift-path skid-steer loader. While it is often referred to in the industry as a “1-ton” unit because its Rated Operating Capacity (ROC) is approximately 2,300 lbs (slightly over 1 metric ton), its actual operating weight is significantly higher.
Here are the detailed technical specifications for the Bobcat S64:

Engine & Performance

Horsepower: 68 hp (50.7 kW).
Engine Type: Turbo Diesel (Tier 4, Non-DPF).
Rated Operating Capacity (ROC): 2,300 lbs (1,043 kg).
Tipping Load: 4,600 lbs (2,087 kg).
Travel Speed (Standard): 7.4 mph (11.9 km/h).
Travel Speed (2-speed option): 11.0 mph (17.7 km/h)

Dimensions & Weight

Feature Measurement (Imperial) Measurement (Metric);
Operating Weight 6,974 lbs 3,163 kg.
Length with Standard Bucket 135.0 in 3,429 mm.
Width (with bucket) 68.0 in 1,727 mm.
Height to Bucket Hinge Pin 120.0 in 3,048 mm.
Overall Height (Cab) 80.5 in 2,045 mm.
Wheelbase 44.6 in 1,133 mm.

Hydraulic System

Standard Flow: 17.6 gal/min (66.6 L/min).
High Flow (Optional): 26.9 gal/min (101.8 L/min).
System Relief Pressure: 3,500 psi (241.32 bar).

Key Features

Vertical Lift Path: Optimized for loading high-sided trucks and stacking pallets.
R-Series Cab: Features a one-piece sealed and pressurized design for reduced noise and better dust protection.
Cast-Steel Lift Arms: Thinner yet stronger profile to improve visibility to the sides and the bucket.
Non-DPF Engine: Meets Tier 4 emissions standards without a Diesel Particulate Filter, eliminating the need for regeneration downtime.
Note: If you are planning to transport this unit, keep in mind the operating weight (~7,000 lbs) plus the weight of your trailer. You will likely need a 3/4-ton truck (e.g., F-250/2500 series) or higher to tow it safely.
