Bobcat Skid Loader S86 | 1.8 ton

Description

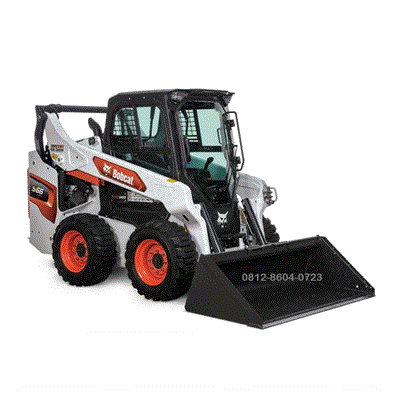

Bobcat Skid Loader S86 | 1.8 ton

The Bobcat S86 is currently the most powerful skid-steer loader in Bobcat’s R-Series lineup. While you mentioned “1.8 ton,” it is important to note that this machine is significantly larger: it has an operating weight of approximately 4.4 tons and a Rated Operating Capacity (ROC) of about 1.5 to 1.7 tons depending on the configuration.
Below are the detailed specifications for the Bobcat S86:

Performance & Capacity

Rated Operating Capacity (ISO): 1,587 kg (3,400 lbs).
ROC with Counterweights: Up to 1,678 kg (3,700 lbs).
Tipping Load: 3,084 kg (6,800 lbs).
Operating Weight: 4,412 kg (9,728 lbs).
Travel Speed: 10.8 km/h (Low) / 19.3 km/h (High/2-Speed option).

Engine

Engine Type: Bobcat 3.4L Diesel (Turbocharged).
Horsepower: 105 hp – 110 hp (varies slightly by region/tier).
Emissions Tier: Tier 4 (Non-DPF) / Stage V.
Fuel Tank Capacity: 119.6 Liters (31.6 gal).

Hydraulic System

The S86 is unique for offering three different flow options in a single machine:
Standard Flow: 89.3 L/min (23.6 gpm) @ 3,500 psi.
High Flow (Optional): 138.5 L/min (36.6 gpm) @ 3,500 psi.
Super Flow (Optional): 159 L/min (42 gpm) @ 4,061 psi.

Dimensions

Length (with bucket): 3.90 meters (153.5 in).
Width (with bucket): 1.88 meters (74 in).
Height to Cab Top: 2.11 meters (83.1 in).
Height to Hinge Pin: 3.35 meters (132 in) — Excellent for loading high-sided trucks.

Key Features

Vertical Lift Path: Optimized for lift-and-carry tasks and loading materials into high trucks.
Premium Power Performance: An intelligent power management system that distributes power more efficiently during multi-tasking.
One-Piece Pressurized Cab: Offers reduced noise levels and improved visibility compared to previous M-series models.
SJC (Selectable Joystick Controls): Standard on most high-spec units, allowing for precision control of attachments.
