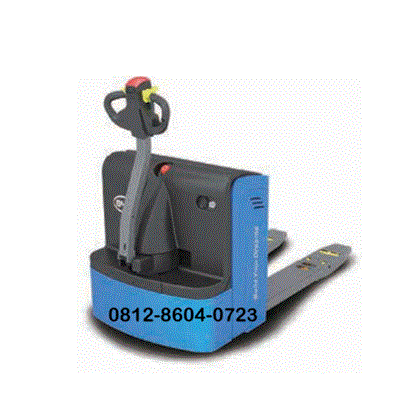

BYD Pallet Mover P20JW | 2 ton
BYD Pallet Mover P20JW | 2 ton
Technical Specifications
Feature Specification;
Model P20JW.
Power Type Electric.
Operator Type Walkie (Pedestrian).
Load Capacity 2,000 kg (2.0 Ton).
Load Center 600 mm.
Service Weight (with battery) 577 kg.
Turning Radius 1,520 mm.
Travel Speed (Laden/Unladen) 5.5 / 5.6 km/h.
Gradeability (Laden/Unladen) 8% / 20%.
Description
BYD Pallet Mover P20JW | 2 ton
The BYD P20JW is a 2-ton electric walkie pallet mover specifically designed for efficiency in narrow aisles and multi-shift warehouse operations.
Its standout feature is the Lithium Iron-Phosphate (LiFePO4) battery technology, which allows for rapid “opportunity charging” during breaks without damaging the battery life.
Below are the detailed specifications for the 2,000 kg (2-ton) unit:
Technical Specifications
Feature Specification;
Model P20JW.
Power Type Electric.
Operator Type Walkie (Pedestrian).
Load Capacity 2,000 kg (2.0 Ton).
Load Center 600 mm.
Service Weight (with battery) 577 kg.
Turning Radius 1,520 mm.
Travel Speed (Laden/Unladen) 5.5 / 5.6 km/h.
Gradeability (Laden/Unladen) 8% / 20%.
Battery & Charging System
BYD uses a proprietary integrated battery system that eliminates the need for a dedicated battery room.
Battery Voltage/Capacity: 24V / 110Ah (Standard) or 130Ah (Optional)
Battery Type: Lithium Iron-Phosphate (LiFePO4).
Charging Time: * Standard (30A): ~3.5 hours.
Quick Charge (100A): ~1 hour.
Battery Life: Over 4,000 cycles (typically 10+ years).
Key Dimensions
Fork Dimensions: 54 mm × 180 mm × 1,220 mm (Standard).
Overall Length: 1,900 mm.
Overall Width: 775 mm
Lowered Fork Height: 82 mm.
Lift Height: 120 mm.
Performance Features
Drive Control: AC Drive Motor (maintenance-free, no brushes).
Safety Systems: * Automatic deceleration when turning.
Emergency power-off switch.
Braking occurs automatically when the tiller handle is in the vertical or horizontal position.
Operating Conditions: Capable of operating in temperatures ranging from -40°C to 60°C, making it suitable for cold storage.
Display: Digital LCD multifunction display with error codes, battery level, and hour meter.
Note: The LiFePO4 battery is maintenance-free, meaning you do not need to add water or perform acid checks like traditional lead-acid units.
