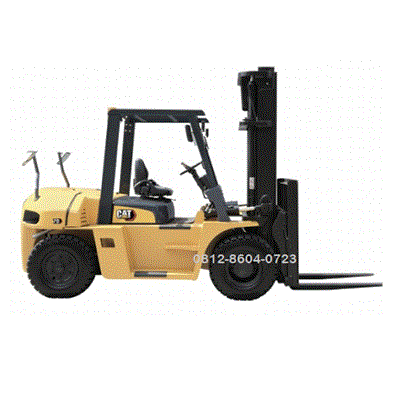

Caterpillar Forklift DP115NL | 11.5 ton

Description

Caterpillar Forklift DP115NL | 11.5 ton

The Caterpillar DP115NL is a heavy-duty diesel forklift designed for intense outdoor applications like stevedoring, metal industries, and heavy construction.
Part of the 10.0–16.0 tonne series, it is known for its rugged construction and the high-torque Isuzu engine.
Below are the detailed technical specifications for the unit:

Key Performance & Capacity

Feature Specification.
Rated Capacity 11,500 kg (11.5 Ton).
Load Center 600 mm.
Travel Speed (Full Load) 34 km/h.
Lift Speed (Full Load) 450 mm/s.
Gradeability (Loaded) 38.5%.
Turning Radius (Outside) 4,000 mm.

Engine & Drivetrain

Engine Model: Isuzu 6BG1T (Turbocharged Diesel).
lass=”yoast-text-mark” />>Engine Displacement: 6.5 Liters (6,494 cc).
Rated Output: 114 kW (155 PS) @ 2,000 rpm.
Max Torque: 537 N·m @ 1,800 rpm.
Transmission: 3-speed Automatic Powershift (3 Forward / 3 Reverse).
Brake System: Air-over-hydraulic service brakes; Electric-toggle parking brake.

Dimensions & Weight

Dimension Measurement.
Total Truck Weight (Empty) 14,370 kg.
Length to Fork Face 4,285 mm.
Overall Width (with Dual Tires) 2,280 mm.
Height (Mast Lowered) 2,915 mm.
Height (to Overhead Guard) 2,755 mm.
Standard Fork Size ($L \times W \times T$) 1,220 x 180 x 90 mm.

Advanced Features

Presence Detection System (PDS): Automatically disengages drive and hydraulic functions if the operator leaves the seat.
Hydrostatic Steering: Provides precise maneuvering with minimal physical effort.
Cooling & Air Intake: Equipped with a double-element air filter and high-efficiency cooling for dusty or harsh environments.
Visibility: Features narrow mast channels and small-diameter lift cylinders to maximize the forward field of vision.
Note: These specs refer to the standard configuration. Attachments (like side-shifters or fork positioners) or different mast stages (Duplex/Triplex) will affect the residual capacity and overall height.
