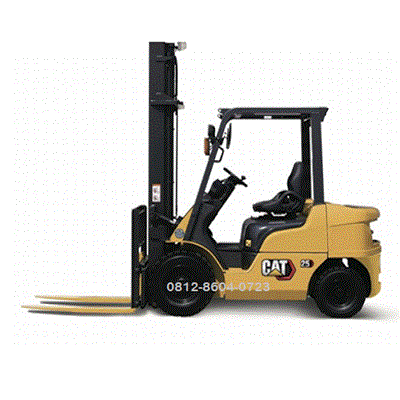

Caterpillar Forklift DP20N | 2 ton

Description

Caterpillar Forklift DP20N | 2 ton

The Caterpillar DP20N is a heavy-duty, diesel-powered counterbalance forklift designed for high-cycle applications in warehouses, construction, and industrial yards.
It is widely recognized for its Mitsubishi S4S engine and its balance of compact size and lifting power.
Below are the technical specifications for the 2-ton (2,000 kg) unit:

General Specifications

Model: DP20N.
Power Source: Diesel.
Load Capacity: 2,000 kg (2 tons).
Load Center: 500 mm.
Transmission: Powershift / Automatic (1 Speed).
Tire Type: Pneumatic (Standard) or Solid Pneumatic (SE).

Engine & Performance

Engine Model: Mitsubishi S4S (4-Cylinder, 3.3L).
Rated Power: 42.3 kW to 44 kW (approx. 57–60 hp).
Max Travel Speed: 19 km/h (loaded) | 19.5 km/h (unloaded).
Lifting Speed: 0.64 m/s (loaded).
Lowering Speed: 0.50 m/s.
Gradeability: Up to 34% (loaded).

Dimensions & Weight

Overall Length (to fork face): 2,490 mm.
lass=”yoast-text-mark” />>Overall Width: 1,150 mm.
>Overall Height (to top of overhead guard): 2,105 mm.
Turning Radius (Wa): 2,196 mm.
Wheelbase: 1,600 mm.
Ground Clearance (at mast): 115 mm.
Service Weight: Approx. 3,420 kg – 3,460 kg.

Mast & Lifting

Standard Lift Height: 3,000 mm (Simplex mast).
Max Fork Height: Options up to 7,010 mm (Triplex mast).
Tilt Angle: 6° forward / 10° backward.

Key Features

PDS (Presence Detection System): Disengages drive and hydraulic functions if the operator leaves the seat.
Maintenance: Features a 500-hour service interval and easy access to the engine compartment via a rear-hinged hood.
Cooling System: Designed with a heavy-duty radiator and “v-flow” cooling to prevent overheating in high-temperature environments.
