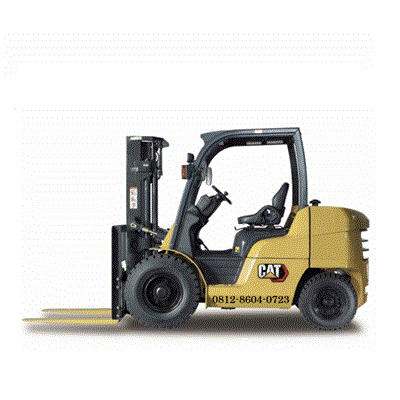

Caterpillar Forklift DP50N | 5 ton

Description

Caterpillar Forklift DP50N | 5 ton

The Caterpillar DP50N is a heavy-duty diesel forklift designed for high-capacity industrial applications. Part of the DP40N-DP55N series, it is known for its rugged construction and the use of the reliable Mitsubishi S6S engine.
Below are the detailed technical specifications for the 5-ton unit:

Key Performance & Capacity

Load Capacity: 5,000 kg (5 tons).
Load Center: 600 mm.
Travel Speed (Loaded/Unloaded): 21.0 / 22.0 km/h.
Lift Speed (Loaded/Unloaded): 0.47 / 0.53 m/s.
Lowering Speed (Loaded): 0.50 m/s.
Maximum Gradeability (Loaded): 26.8% (approx. 15°).

Engine & Powertrain

Engine Model: Mitsubishi S6S (Diesel).
Rated Output: 57.5 kW @ 2,300 rpm.
Maximum Torque: 260 Nm @ 1,700 rpm.
Displacement: 4,996 cc (5.0L).
Transmission Type: Powershift (Torque Converter).
Speeds: 2 Forward / 1 Reverse.
Fuel Tank Capacity: 105 Liters.

Dimensions & Weight

Service Weight: Approx. 6,740 kg.
Overall Width: 1,965 mm.
Turning Radius (Outside): 2,890 mm.
Overhead Guard Height: 2,296 mm.
Standard Lift Height (Simplex): 3,300 mm.
Mast Lowered Height: 2,320 mm.
Fork Dimensions (T x W x L): 50 x 150 x 1,220 mm.

Chassis & Wheels

Tire Type: Pneumatic (Standard).
lass=”yoast-text-mark” />>Tire Size (Front): 300-15-18PR.
=”yoast-text-mark” />>Tire Size (Rear): 7.00-12-14PR.
Wheelbase: 2,150 mm.
Brakes: Self-energizing / Hydraulic.

Safety & Technology Features

PDS+ (Presence Detection System): Automatically disengages drive and hydraulic functions if the operator leaves the seat.
LCD Display: Multi-functional monitor showing fuel level, temperature, and maintenance diagnostics.
Soft Landing: Automatically slows the fork lowering speed as they approach the ground to protect fragile loads.
Full-Floating Power Line: Reduces vibration and noise by mounting the engine and transmission on rubber dampeners.
