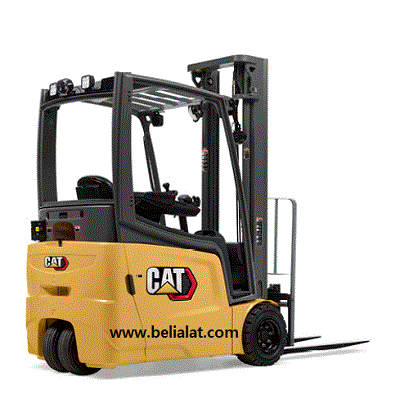

Caterpillar Forklift EP13TCB | 1.3 ton

Caterpillar Forklift EP13TCB | 1.3 ton

Key Technical Specifications

Feature Specification.
Rated Capacity 1,300 kg.
Load Centre 500 mm.
Power Source 48 V Electric Battery.
Battery Capacity 320 Ah (5-hour rate).
Operator Type Seated.
Tire Type Pneumatic (or Solid Pneumatic/SE).
Drive Control AC Inverter Control (Traction & Hydraulics).

Description

Caterpillar Forklift EP13TCB | 1.3 ton

The Caterpillar EP13TCB is a compact, 3-wheel electric counterbalance forklift designed for high maneuverability in tight indoor spaces like warehouses, containers, and narrow aisles.
It is part of the EP-TCB series known for its energy efficiency and IPX4 water resistance.

Key Technical Specifications

Feature Specification.
Rated Capacity 1,300 kg.
Load Centre 500 mm.
Power Source 48 V Electric Battery.
Battery Capacity 320 Ah (5-hour rate).
Operator Type Seated.
Tire Type Pneumatic (or Solid Pneumatic/SE).
Drive Control AC Inverter Control (Traction & Hydraulics).

Dimensions & Performance

Overall Length: Approximately 2,855 mm (to fork face).
Overall Width: Standard width is around 1,070 mm.
Turning Radius: Highly agile due to its 3-wheel configuration, suitable for “working aisle widths” (Ast) of roughly 3,100 / 3,300 mm depending on pallet size.
Travel Speed: Typically up to 15 – 17 km/h (unloaded).
Gradeability: Capable of handling slopes up to 20% (unloaded) or 13% (loaded).

Mast Options

The EP13TCB supports various mast configurations depending on your lift height requirements:
Simplex (2-stage): Standard lift heights (usually 3,000 mm).
Duplex (2-stage with free lift): Ideal for low-ceiling areas like containers.
Triplex (3-stage with free lift): For high-reach racking, with lift heights often reaching up to 7,000 mm.

Notable Features

Presence Detection System (PDS): Automatically disengages drive and hydraulic functions if the operator leaves the seat.
IPX4 Rating: Protected against water splashes from any angle, allowing for limited outdoor use in light rain.
Regenerative Braking: Recharges the battery during deceleration, extending shift life.
VFD Display: A bright Vacuum Fluorescent Display on the right side for clear viewing of battery status and speed.
