Caterpillar Forklift EP15CB | 1.5 ton

Description

Caterpillar Forklift EP15CB | 1.5 ton

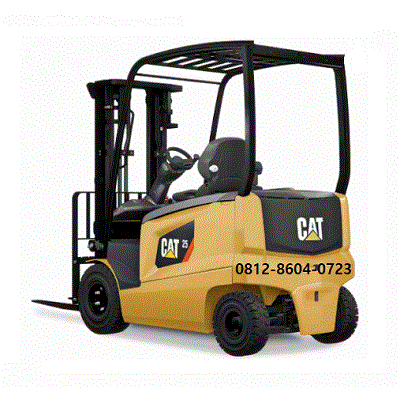

The Caterpillar EP15CB is a versatile 4-wheel electric pneumatic tire forklift designed for indoor and light outdoor applications.
It is part of the EP-CB series, known for its energy efficiency and “Auto Torque Up” technology, which provides extra power on slopes and uneven terrain.

Core Specifications

Feature Specification.
Model EP15CB.
Load Capacity 1,500 kg (1.5 tons).
Load Center 500 mm.
Power Source Electric (48V Battery).
Operator Type Seated / 4-Wheel.
Standard Fork Height 3,000 mm (can vary by mast).
Turning Radius Approx. 1,800 mm.
IP Rating IPX4 (Waterproof – suitable for rain).

Dimensions & Weights

Length to Fork Face: 2,080 mm.
Overall Width: 1,100 mm.
Height to Overhead Guard: 2,110 mm.
Gross Weight: Approximately 2,250 kg (varies with battery and mast options).

Key Performance Features

Auto Torque Up: Intelligently detects when extra power is needed for climbing slopes or carrying heavy loads.
PDS (Presence Detection System): A safety feature that locks travel and hydraulic functions if the operator is not in the seat.
Regenerative Braking: Reclaims energy during braking to extend battery life.
ECO Mode: A selectable driving mode to optimize energy consumption and prolong run-time.
Interactive Display: A high-quality LCD screen providing real-time data on battery status, speed, and diagnostics.

Optional Equipment

Fingertip Controls: Replaces standard levers for high-precision hydraulic handling.
Laser Pointer: Projects a red line onto the load to help operators align forks quickly.
Intelligent Load Indicator: Provides real-time weight feedback and warns the operator if the truck is overloaded.
