Caterpillar Forklift NVT14 | 1.4 ton

Description

Caterpillar Forklift NVT14 | 1.4 ton

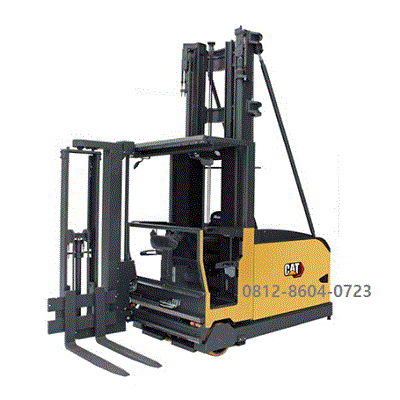

The Caterpillar NVT14 is a specialized “Man-Up” Turret Truck designed specifically for Very Narrow Aisle (VNA) warehouse operations.
Unlike standard forklifts, the NVT series allows the operator to rise with the forks, providing excellent visibility for high-level order picking and stacking.
Below are the key technical specifications for the 1.4-ton (1,350 kg) model:

Core Performance

Load Capacity: 1,350 kg (approx.3 1.4 tons).
Load Center: 600 mm.
Power Source: 48V Battery (Electric).
Max Lift Height: Up to 16.5 meters (depending on mast configuration).
Travel Speed: Up to 12 km/h.
Aisle Width Requirement: Typically handles aisles as narrow as 1.5–1.8 meters (depending on pallet size).

Technical Dimensions

Feature Specification.
Operator Type Seated / Standing (Man-Up).
Chassis Width 1,000 mm to 1,900 mm (Customizable).
Turning Radius ~2,080 mm.
Ground Clearance 40 mm (at center of wheelbase).
Mast Type Triplex / High-reach options available.

Key Features

Responsive Drive System (RDS): Adjusts performance parameters based on the speed of pedal and joystick movement for smooth starts and stops.
Ergonomics: Features an adjustable control pod, tilting side gates for easier order picking, and a high-comfort suspension seat.
Safety Systems: Includes a Presence Detection System (PDS), which prevents movement if the operator is not correctly positioned, and automatic speed reduction at height.
Turret Head: The fork carriage can rotate 180 degrees, allowing the truck to stack pallets on either side of the aisle without turning the entire vehicle.

Common Applications

High-density warehousing.
Logistics centers with high racking (up to 16m+).
Food and beverage storage (including cold storage versions).
