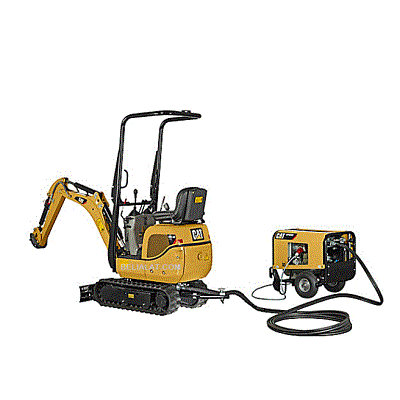

Caterpillar Mini Excavator HPU300 | 1 ton

Description

Caterpillar Mini Excavator HPU300 | 1 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Caterpillar Mini Excavator HPU300 | 1 ton

Specification Unit Caterpillar Mini Excavator HPU300 | 1 ton

Engine

Gross Power 9.7 kW
Engine Type Liquid Cooled, 3 Cylinder, Diesel
Fuel Tank Capacity 10 l

Weight

Operating Weight 1088 kg

Working Ranges and Forces

Maximum Digging Depth 6820 mm
Boom HD Reach 5.9 m (19’4″)
Stick HD Reach 2.95 m (9’8″).

Bucket HD 1.54m³ (2.01 yd³)
Maximum Reach at Ground Level 10120 mm.

Maximum Cutting Height 9640 mm
Maximum Loading Height 6620 mm.

Minimum Loading Height 2390 mm
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom 6650 mm.

Maximum Vertical Wall Digging Depth 5110 mm
Bucket Digging Force – ISO 166 kN.

Stick Digging Force – ISO 121 kN

Hydraulic System

Flow Rate 20 L/min
Hydraulic Oil Tank Capacity 9 l
Connecting Hose Length 10 m
Operating Pressure 190 bar

Swing Machine

Swing Speed 9.8 r/min
Note (1) For CE-marked machine default value may be set lower.
Maximum Swing Torque 106 kN·m

Service Refill Capacities

Fuel Tank Capacity 474 l
Cooling System 25 l
Engine Oil 25 l
Swing Drive 11.5 l
Final Drive – Each 4.5 l
Hydraulic System – Including Tank 310 l
Hydraulic Tank 147 l

Dimensions

Dig Depth 1731 mm
Length × Width × Height 2476 × 700 × 1507 mm (108 × 28 × 59 in)
Operating Weight 1088 kg
Shipping Weight 988 kg

Length × Width × Height 930 × 720 × 1000 mm (36.5 × 28.3 × 39.5 in)
Operating Weight 192 kg

Operating Specifications

Dumping Height – Maximum 2035 mm
Reach at Ground Level 3027 mm
Stick Force 4.5 kN
Bucket Force 8.9 kN

Motor – HPU300

Input Current 16A
Motor Type 3 Phase Electric Motor
Performance – North America 9 kW
Performance – Europe 7.5 kW

Air Conditioning System

Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.00 kg of refrigerant, which has a CO2 equivalent of 1.430 metric tonnes.
