Caterpillar Pallet Mover NPS30N2 | 3 ton

Description

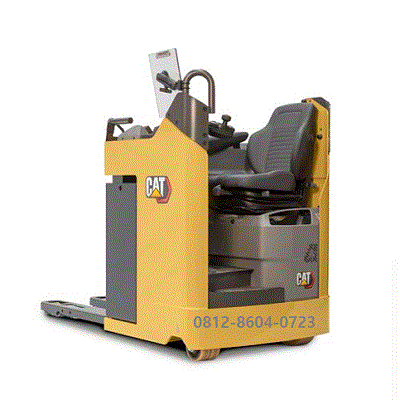

Caterpillar Pallet Mover NPS30N2 | 3 ton

The Caterpillar (Cat) NPS30N2 is a high-performance Sit-on Power Pallet Truck designed for intensive horizontal transport over long distances.
With a 3.0-ton (3,000 kg) capacity, it is built for efficiency in large warehouses, cross-docking centers, and multi-shift operations.
Below are the key technical specifications for the NPS30N2:

Technical Specifications

Feature Specification.
Model NPS30N2.
Type Sit-on Power Pallet Truck.
Load Capacity 3,000 kg (3.0 Ton).
Load Center 600 mm.
Power Source Electric (24V).
Drive Motor 2.7 kW (AC Motor).
Lift Motor 2.2 kW.
Travel Speed (Laden/Unladen) 9.0 / 12.0 km/h (standard).
Lift Height 135 mm.
Turning Radius Approx. 1,705 mm (varies with fork length).
Battery Voltage/Capacity 24V / 375–775 Ah.

Key Performance Features

Advanced AC Technology: Equipped with a low-maintenance AC drive motor that provides high torque and smooth acceleration even when carrying a full 3-ton load.
Ergonomic Operator Cabin: Features a fully adjustable suspension seat and a mini steering wheel on a floating armrest to reduce operator fatigue during long shifts.
Precision Steering: Progressive electric power steering automatically adjusts sensitivity based on travel speed, ensuring stability during fast travel and precision in tight spaces.
Automatic Cornering Control: Automatically reduces speed during turns to prevent load shifting and enhance safety.
Battery Options: Available with traditional Lead-Acid batteries or high-efficiency Li-ion options for opportunity charging and zero maintenance.

Dimensions & Maneuverability

Compact Design: Despite its high capacity, the sit-on design allows for narrower aisles (7$A_{st}$) compared to traditional platform trucks because the operator is contained within the chassis.
Ground Clearance: High ground clearance (9$25 \text{ mm}$) helps prevent “hanging up” when navigating ramps or uneven flooring.
Fork Tips: Tapered forks with angled tips facilitate faster and easier pallet entry, reducing the risk of damage to the load.
Note: Actual travel speeds and aisle widths may vary slightly depending on the specific fork length chosen (e.g., 1,150 mm vs 2,400 mm) and battery weight.
