Caterpillar Pallet Stacker NSP10N3 | 1 ton

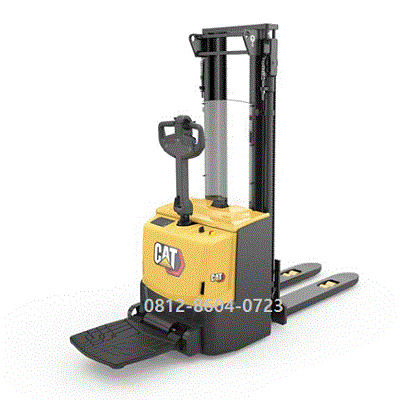

The Caterpillar (Cat) NSP10N3 is a compact, pedestrian-controlled electric pallet stacker designed for high-efficiency warehouse operations, specifically short shuttle applications and stacking in tight spaces.
Below are the detailed technical specifications for the 1.0-ton model:
Core Performance & Capacity
Load Capacity: 1,000 kg (1.0 Ton).
Load Center: 600 mm.
Maximum Travel Speed: 6.0 km/h (with or without load).
Lifting Speed: 0.15 m/s (with load) / 0.30 m/s (without load).
Lowering Speed: 0.29 m/s (with load) / 0.32 m/s (without load).
Gradeability: 8% (with load) / 15% (without load).
Dimensions & Weight
Overall Length: 1,835 mm.
Length to Fork Face: 685 mm.
Overall Width: 800 mm.
Wheelbase: 1,215 mm.
Fork Dimensions (T x W x L): 56 mm / 186 mm / 1,150 mm.
Turning Radius: 1,458 mm.
Ground Clearance: 20 mm (at center of wheelbase).
Service Weight: Approx. 730 kg (including maximum battery weight).
Mast & Lifting Heights
The NSP10N3 typically comes with a Simplex or Duplex mast. Standard heights include:
Standard Lift Height: 3,300 mm (can vary based on mast choice, up to 5,400 mm in some configurations).
Lowered Mast Height: Approx. 1,950 mm (depending on lift height).
Free Lift: 1,355 mm (on specific models).
Electrical System & Motor
Drive Motor: 1.0 kW AC (precise, low-maintenance).
Lift Motor: 2.2 kW.
Battery Voltage/Capacity: 24V / 150 Ah (Lead-acid or Li-ion options available).
Braking: Electromagnetic/Regenerative.
Key Features
EmPower Tiller Arm: Ergonomically designed with large lift/lower levers for easy one-handed operation.
“Tortoise” Mode: Allows the truck to be driven with the tiller arm in a vertical position for maximum maneuverability in ultra-narrow aisles.
Durability: Features a closed chassis and waterproof electrics to resist moisture and dirt.
Visibility: Slim mast profiles provide an excellent view of the forks and the load.
Note: Performance may vary slightly depending on tire type (Vulkollan is standard) and specific battery configurations.
