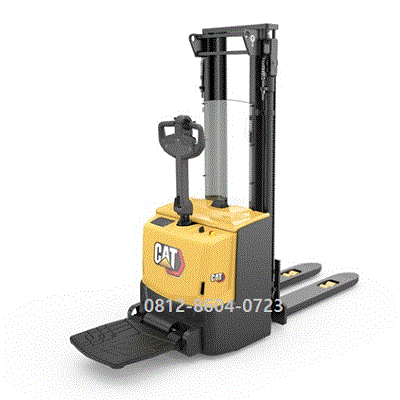

Caterpillar Pallet Stacker NSP12N3 | 1.2 ton

The Caterpillar (Cat) NSP12N3 is a 1.2-ton electric pedestrian stacker designed for short-shuttle applications and heavy-duty warehouse stacking.

It features advanced AC drive technology and is known for its narrow chassis, which makes it ideal for tight aisles.
Below are the detailed specifications for the NSP12N3 model:

Core Specifications

Feature Specification.
Load Capacity 1,200 kg (1.2 tons).

Load Center 600 mm.
Power Source 24V Electric (Lead-Acid or Li-ion options).

Operator Type Pedestrian (Walk-behind).
Travel Speed 6.0 km/h (with/without load).
Weight (incl. battery) Approx. 1,020 kg.

Performance & Motors

Drive Motor: 1.0 kW AC (High torque, low maintenance).
Lift Motor: 2.2 kW.

Lifting Speed: 0.16 m/s (loaded) / 0.33 m/s (unloaded).
Lowering Speed: 0.46 m/s (loaded).
Gradeability: 8% (loaded) / 15% (unloaded).

Mast & Dimensions

Max Lift Height: Standard heights range from 1.5m to 5.4m (depending on mast type: Simplex, Duplex, or Triplex).
Overall Width: 800 mm.

Transport Length: 1,900 mm (to fork face: 750 mm).
Turning Radius: 1,458 mm (one of the tightest in its class).

Fork Dimensions: 56 mm (thickness) x 186 mm (width) x 1,150 mm (length).
Ground Clearance: 20 mm.

Key Features

Tortoise Mode: Allows the truck to be driven with the tiller arm in a vertical position for maximum maneuverability in extremely confined spaces.

Durability: Equipped with a closed, waterproof chassis and oil-filled transmission to protect internal components from moisture and dirt.
Programmable Controller: Allows for customized performance settings (e.g., prioritizing battery life vs. speed).

Variants in the 1.2 Ton Range

NSP12N3R: Includes a fold-down operator platform for longer travel distances.
NSP12N3I: Features “Initial Lift” for higher ground clearance, ideal for use on ramps or uneven floors.

NSP12N2C: A “Compact” version that is even narrower and lighter for light-duty applications.
