Caterpillar Pallet Stacker NSP14N3 | 1.4 ton

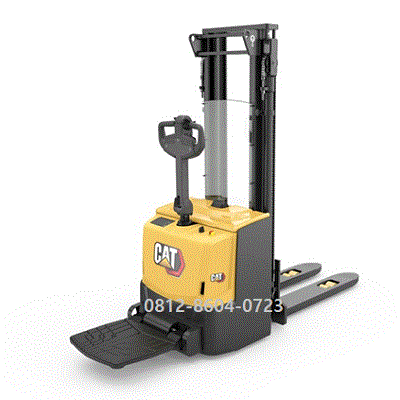

The Caterpillar (Cat) NSP14N3 is a 1.4-ton pedestrian pallet stacker designed for intensive warehouse operations, specifically for short-to-medium shuttle distances and high-level stacking.
Below are the detailed technical specifications for the standard NSP14N3 model.

Performance & Capacity

Load Capacity: 1,400 kg (1.4 ton).
Load Center: 600 mm.
Travel Speed: 6.0 km/h (both with and without load).
Lift Speed: 0.14 m/s (with load) / 0.33 m/s (without load).
Lowering Speed: 0.45 m/s (with load) / 0.35 m/s (without load).
Gradeability: 8% (with load) / 15% (without load).

Dimensions & Weight

Chassis Width: 800 mm.
Overall Length: ~1,900 mm (to fork face).
Fork Dimensions: 56 mm (thickness) x 186 mm (width) x 1,150 mm (length).
Turning Radius: 1,572 mm (standard walk-behind).
Ground Clearance: 20 mm (at center of wheelbase).
Total Weight: Approx. 1,020 kg (including battery).

Electrical System

Battery Voltage: 24 V.
Battery Capacity: 250 Ah (standard), options up to 375 Ah.
Traction Motor: 1.0 kW (AC).
Lift Motor: 2.2 kW.

Key Features & Variants

Mast Options: Available in Duplex and Triplex configurations with maximum lift heights typically reaching up to 5.4 meters.
Ergonomics: Features a state-of-the-art tiller arm with a “tortoise” mode, allowing the truck to be driven in a vertical position for tight-space maneuverability.
Durability: Waterproofed electronics and a closed chassis to protect against dirt and moisture.

Variants:

NSP14N3R: Includes a fold-down operator platform for longer distances.
NSP14N3I: Features initial lift for increased ground clearance on ramps and uneven floors.
Note: Lift height and lowered mast height will vary depending on whether you choose a Simplex, Duplex, or Triplex mast.
