Description
Caterpillar Pallet Stacker NSP16N3 | 1.6 ton

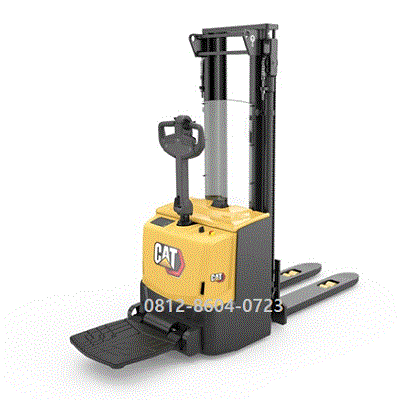

The Caterpillar (Cat) NSP16N3 is a heavy-duty electric pedestrian pallet stacker designed for intensive warehouse operations, specifically short-to-medium shuttle applications and high-level stacking.
Below are the primary technical specifications for the 1.6-ton unit:
Core Performance & Capacity
Feature Specification.
Load Capacity 1,600 kg (1.6 tonnes).
Load Centre 600 mm.
Travel Speed 6.0 km/h (with and without load).
Lifting Speed 0.15 m/s (with load) / 0.32 m/s (without load).
Lowering Speed 0.43 m/s (with load).
Gradeability 8% (with load) / 15% (without load).
Dimensions & Weight
Overall Length: ~1,965 mm (varies by fork length).
Overall Width: 800 mm.
Turning Radius: 1,637 mm.
Wheelbase: 1,395 mm.
Fork Dimensions: 1,150 mm (L) x 186 mm (W) x 56 mm (T).
Service Weight: ~1,288 kg (including battery).
Mast & Lifting Heights
The NSP16N3 is available with several mast configurations. Typical lift heights include:
Standard Lift Heights: 3,300 mm, 4,700 mm, up to a maximum of 5,400 mm.
Free Lift: Depends on mast type (Simplex, Duplex, or Triplex). Triplex masts allow for high lifting while maintaining a low collapsed height for doorway clearance.
Electrical System
Battery Voltage/Capacity: 24V / 250Ah – 375Ah (Lead-acid or Li-ion options).
Traction Motor: 1.0 kW AC motor (precise and low maintenance).
Hoist Motor: 3.2 kW (powerful lifting performance).
Key Features
Advanced AC Technology: Provides smooth, quiet operation and precise control via the ergonomic tiller arm.
Programmable Performance: Includes “Tortoise” mode for ultra-slow maneuvering in tight spaces and programmable settings to prioritize energy efficiency or speed.
Durability: Features a water-resistant chassis and protected electronics to withstand harsh warehouse environments.
Variants: * NSP16N3R: Includes a fold-down platform for the operator.
NSP16N3I: Features “Initial Lift” for extra ground clearance on ramps and uneven floors.
NSP16N3S: Straddle version for handling wide loads or closed-bottom pallets.
