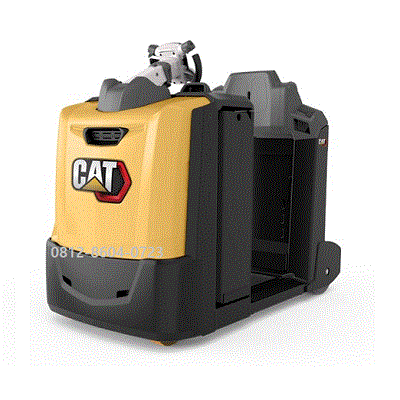

Caterpillar Towing Tractor NTR30N2 | 3 ton

Description

Caterpillar Towing Tractor NTR30N2 | 3 ton

The Caterpillar NTR30N2 is a high-efficiency electric towing tractor designed primarily for indoor warehouse and industrial applications, such as the automotive sector.
It is part of the NTR-N2 series, which emphasizes operator comfort and smart driving technology.
Below are the key specifications and features for the 3-ton model:

Technical Specifications

Category Specification.
Model NTR30N2.
Towing Capacity 3,000 kg (3.0 Tonnes).
Power Source 24V Electric.
Motor Type AC Drive Motor.
Service Weight ~1,106 kg (including battery).
Overall Length 1,450 mm.
Overall Width 800 mm
Turning Radius Small (3-wheel configuration).
Control System AC Controller (IP65 rated).

Key Features & Performance

Responsive Drive System (RDS): Features advanced steering functionality that adapts to travel speed and operator behavior for smooth maneuvering.
Intelligent Curve Control: Automatically adjusts speed and steering sensitivity during turns to maintain stability and traction.
Walk-Beside Operation: Allows the operator to move the tractor forward and backward while standing outside the cabin, simplifying the coupling/uncoupling process.
Triple Suspension Floor: A floating floor structure designed to dampen shocks and micro-vibrations, significantly reducing operator fatigue.
Regenerative Braking: Recycles energy back into the battery during deceleration, extending runtime and reducing wear on brake components.

Battery & Durability

Li-ion Compatible: Can be equipped with Li-ion batteries for fast opportunity charging and maintenance-free operation.
IP Protection: The steering wheel and tiller head are sealed to IP67, and the controller to IP65, protecting the unit from dust and water ingress.
Rugged Construction: Built with a simplified one-piece welded steel main frame and a robust front bumper for heavy-duty protection.

Maintenance & Safety

Plug-in Diagnostics: Troubleshooting can be done via a standard laptop and software, reducing the need for proprietary handheld tools.
Access: A removable front cover provides easy access to all major components for quick servicing.
Safety Options: Includes PIN code access to prevent unauthorized use and an automatic coupling device option for instant, secure trailer locking.
Note: For specific performance data like travel speed (km/h) or specific battery Ah requirements, it is best to consult the regional Cat Lift Trucks brochure as these can vary slightly by market.
