Caterpillar Towing Tractor NTS30Q | 3 ton

Description

Caterpillar Towing Tractor NTS30Q | 3 ton

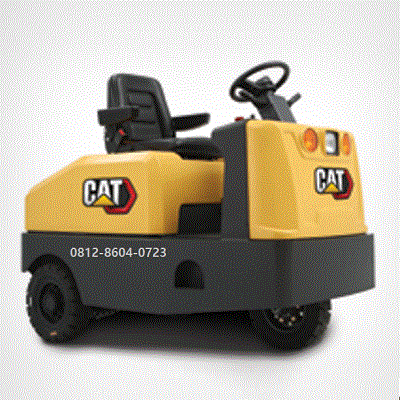

The Caterpillar NTS30Q is a 3-ton electric sit-on towing tractor part of Cat’s “EQ Line.” This series is specifically designed for high-efficiency warehouse and industrial applications, balancing heavy-duty performance with the lower maintenance requirements of modern Lithium-ion technology.
Below are the key specifications and features for this model.

Technical Specifications

Feature Specification.
Model NTS30Q.

Towing Capacity 3,000 kg (3.0 Tonnes).
Power Source Electric (24V).

Battery Type Li-ion (Standard for EQ Line).
Operator Position Sit-on.

Wheel Configuration 3-wheel.
Transport Length 1,720 mm.

Transport Width 938 mm.
Motor Type AC Drive Motor (sealed to IP65).

Key Features & Performance

Rugged Versatility: Built for both indoor and outdoor use.2 It features a high ground clearance to handle bumps, ramps, and rougher yard surfaces that would challenge standard warehouse tugs.

lass=”yoast-text-mark” />>Li-ion Efficiency: The EQ Line uses maintenance-free Lithium-ion batteries, which support opportunity charging.4 This allows operators to plug in during breaks to extend runtime without the need for a secondary battery.

Regenerative Braking: Recycles energy back into the battery during deceleration, extending runtime and reducing wear on the mechanical brake components.

Typical Applications

Automotive: Moving parts and “milk-run” logistics between production lines.
Airports/Logistics: Transporting luggage carts or high-volume freight across large facilities.
Warehousing: Towing heavy trailer trains in “just-in-time” (JIT) delivery environments.
Note: If you are comparing this to other Cat models, the NTR30N2 is a similar 3-ton tractor but typically comes in a stand-on configuration, whereas the NTS30Q is the sit-on entry from the EQ Line.
