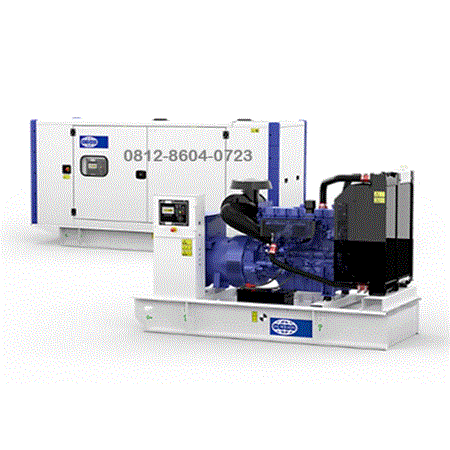

Genset FG Wilson 125 kVA

Description

Genset FG Wilson 125 kVA
BELIALAT.COM support penjualan unit, parts, service, rental, maintenance contract, overhaul, reconditioned Genset FG Wilson 125 kVA

Specifications

Minimum Rating
80 kVA / 64 kW
Maximum Rating
100 kVA / 80 kW
Emissions/Fuel Strategy
Fuel Optimised

General

Minimum Rating : 100 kVA / 80 kW
Maximum Rating : 125 kVA / 100 kW

Emissions Fuel Strategy : Fuel Optimised
50 Hz Prime : 100 kVA / 80 kW

50 Hz Standby : 110 kVA / 88 kW
60 Hz Prime  : 113 kVA / 90.4 kW

60 Hz Standby : 125 kVA / 100 kW
Frequency : 50 / 60 Hz

Speed : 1500 RPM
Voltage :110-480 Volts

50 Hz Prime Rating

These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours.

60 Hz Prime Rating

These ratings are applicable for supplying continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted on these ratings. The alternator on this model is peak continuous rated (as defined in ISO 8528-3).

50 Hz Standby Rating

Standard reference conditions 25C (77F) Air Inlet Temp, 100m (328 ft) A.S.L. 30% relative humidity. Fuel consumption data at full load with diesel fuel with specific gravity of 0.85 and conforming to BS2869: 1998, Class A2.

Engine

Engine Model Perkins 1104C-44TAG2
Bore 105 mm (4.1 in)
Stroke 127 mm (5 in)
Governor Type Mechanical
Displacement 3.3l (201.4 cu. in)
Compression Ratio 17.25:1
