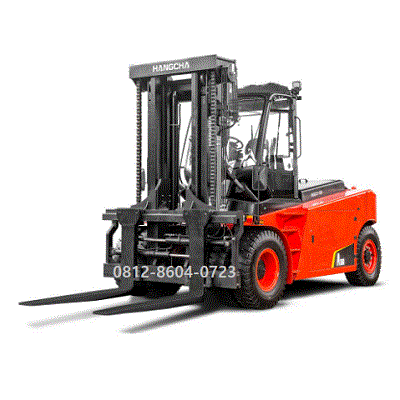

Hangcha Forklift A140 | 14 ton

Description

Hangcha Forklift A140 | 14 ton

The Hangcha A Series (and the related X Series) 14-ton forklifts are heavy-duty machines designed for intense industrial applications like ports, steel mills, and mining.
Depending on your specific model, these units are available in both Internal Combustion (Diesel) and High-Capacity Electric configurations.
Below are the primary specifications for the 14-ton (14,000 kg) models.

Core Performance & Capacity

Feature Specification (IC Diesel). Specification (Electric).
Rated Capacity 14,000 kg (14 tons). 14,000 kg (14 tons).
Load Center 600 mm 600 mm.
Max. Lift Height 3,000 mm (Standard Duplex) 3,000 mm (Standard Duplex).
Max. Travel Speed ~28–30 km/h (Unladen) ~14–16 km/h (Laden).
Gradeability 20% – 28% Up to 15%.
Service Weight ~17,600 kg – 18,200 kg. ~21,000 kg – 23,000 kg (incl. battery).
Internal Combustion (Diesel) Specifications.
The diesel models typically utilize the CPCD140 designation.
Engine Options: * Cummins QSB6.7: A common high-performance choice (Tier 3/Stage IIIA).
Yuchai: Frequently used for cost-effective reliability.
Transmission: ZF Transmission or specialized Hangcha-designed power-shift gearboxes.
Braking: Fully hydraulic power braking with a large volume accumulator; multi-plate wet disc brakes are standard on newer X-series models for low maintenance.
Chassis: Heavy-duty caliper drive axle and a wide-view mast for better visibility.

Electric (A Series 14t) Specifications

The electric 14-ton model is designed for zero-emission environments without sacrificing power.
Power System: 80V or 96V high-capacity Lead-Acid or Lithium-Ion battery options.
Drive Motors: Dual AC travel motors providing high torque and regenerative braking (recharges the battery while slowing down).
Hydraulics: Load-sensing hydraulic system to reduce energy consumption and oil temperature.
Maintenance: Features a tippable cab (manual or electric) for easy access to the motors and controllers.

Physical Dimensions (Approximate)

Length to Face of Forks: ~4,710 mm – 5,470 mm (varies by series).
Overall Width: ~2,490 mm.
Mast Lowered Height: ~3,270 mm.
Turning Radius: ~4,350 mm – 4,450 mm.
Tyres: Pneumatic (standard) or Solid/Superelastic (optional); Front 10.00-20 14PR.

Key Features

Ergonomics: Full-floating cab with rubber vibration absorbers, adjustable steering column, and optional air conditioning/heating.
Safety: Operator Presence System (OPS), LED lighting, and optional rearview cameras or radar sensors.
Customization: Available with 3-stage (Triplex) masts for higher reach, sideshifters, fork positioners, and various attachments like paper roll clamps or bale clamps.
