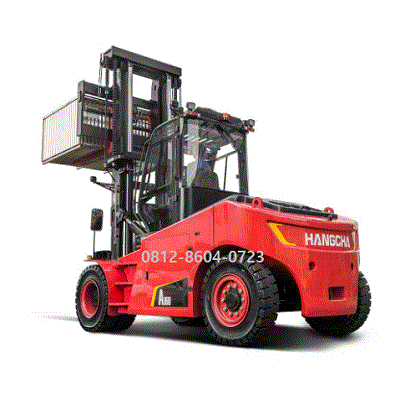

Hangcha Forklift A160 | 16 ton

Description

Hangcha Forklift A160 | 16 ton

The Hangcha A160 (often referred to as the CPCD160 in diesel configurations or CPD160 in electric) is a heavy-duty 16-ton forklift designed for demanding industrial environments like ports, steel mills, and heavy manufacturing.
The “A Series” 16-ton model is available in both Internal Combustion (Diesel) and Electric (Lithium-ion) versions. Below are the core specifications for the 16-ton unit.

Performance & Capacity

Rated Capacity: 16,000 kg (16 tons).
Load Center: 600 mm.
Standard Lift Height: 3,000 mm (Options available up to 6,000 mm+).
Travel Speed (Laden/Unladen): * Diesel: ~25 / 28 km/h.
Electric: ~18 / 20 km/h.
Gradeability (Laden): 20% – 25% (depending on the drivetrain).

Physical Dimensions

Overall Length (to face of forks): ~4,820 mm.
Overall Width: ~2,490 mm.
Height (Mast Lowered): ~3,290 mm.
Turning Radius (Outside): ~4,450 mm.
Service Weight: ~19,200 kg (Diesel) | ~20,000 kg+ (Electric/Lithium).
Fork Size (L × W × T): 1,500 mm × 200 mm × 90 mm (Standard).

Engine & Drivetrain (Diesel Model)

Common Engine Options: * Cummins QSB6.7: Turbocharged 6-cylinder (approx. 119 kW / 160 hp).
Yuchai Engines: Often used in specific regional markets.
Transmission: Okamura (Japanese) or Hangcha-made Powershift transmission (2 speeds forward, 1 reverse).
Braking: Wet multi-plate disc brakes (maintenance-free) with a hydraulic release parking brake.

Electric & Battery (A Series Electric Model)

Battery Type: High-capacity Lithium Iron Phosphate (LiFePO4) or Lead-Acid.
Voltage: 80V or 96V systems (standard high-capacity configurations).
Motors: Dual AC drive motors and a high-torque AC pump motor for lifting.

Key Features

Visibility: The “A Series” features a wide-view duplex mast and a panoramic overhead guard to minimize blind spots.
Maintenance: A tippable cabin design allows for easy access to the engine or electrical components without specialized tools.
Hydraulics: Equipped with a load-sensing hydraulic system that reduces fuel/energy consumption by only providing power when the control levers are used.
Comfort: Fully enclosed cabin with air conditioning/heating, suspension seat, and an integrated joystick controller is standard on most 16-ton builds.
