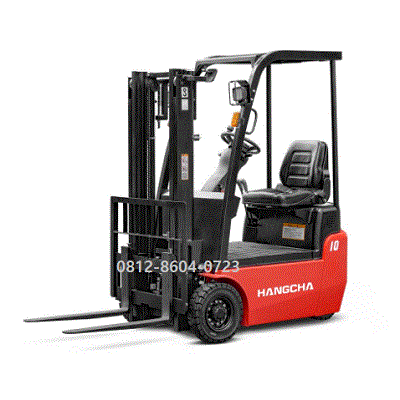

Hangcha Forklift X06 | 0.6 ton

Description

Hangcha Forklift X06 | 0.6 ton

BELIALAT.COM support penjualan unit, parts, service, rental, maintenance contract, overhaul, reconditioned Hangcha Forklift X06 | 0.6 ton

Hangcha Forklift X06 | 0.6 ton, Specifications

The Hangcha X Series 0.6-ton (CPDS06) is a compact, 3-wheel electric counterbalance forklift designed for high maneuverability in extremely tight spaces, such as elevators, narrow warehouse aisles, and multi-floor workshops.
Below are the technical specifications and key features for the 0.6-ton unit (available in both Lead-Acid and Lithium-Ion versions):

Technical Specifications

Model CPDS06-XD2 (Lead-Acid) / CPDS06-XC2 (Li-Ion).
Rated Capacity 600 kg (0.6 ton)
Load Center 400 mm.
Standard Lift Height 2,500 mm (up to 4,500 mm optional).
Turning Radius ~1,220 mm.
Travel Speed (Laden/Unladen) 9 / 10 km/h.
Lift Speed (Laden/Unladen) 0.24 / 0.37 m/s.
Total Width 830 mm.
Overall Weight Approx. 1,335 kg (including battery).
Voltage 24V.

Key Features

Compact & Agile: With a width of only 830mm and a very small turning radius, it is specifically designed to fit inside standard industrial elevators.
Drive System: Features a front-wheel drive system with full AC motors that are maintenance-free and provide precise speed control.
Ergonomics: Despite its small size, it includes an adjustable steering column and an adjustable seat to reduce operator fatigue.
Energy Efficiency: Equipped with Electric Power Steering (EPS) which only consumes energy during turning, and standard energy-saving LED lighting.
Safety Features: * Buffered Descending: Automatically slows down the forks when they are 60–100mm from the ground to prevent impact.
Wide-View Mast: Optimized mast design and a low dashboard minimize blind spots for the operator.
Emergency Cut-off: Includes a standard emergency power-off switch.

Battery Options

Lithium-Ion: Typically comes with a 24V / 125Ah or 250Ah battery. Supports opportunity charging (fast charging during breaks).
Lead-Acid: Standard options often include 24V / 168Ah or 200Ah capacities.
Would you like me to compare this 0.6-ton model with the slightly larger 1.0-ton X Series unit, or do you need the specific dimensions for a different mast height?

Characteristics

Model : Electric Counterbalanced
Operator Position : Sit on Type
Load Capacity : 600 Kg
Load Center C : 500 mm
Alternative Capacity Q2 : 1350 mm
Load Distance X : 404 mm
Wheelbase Y : 1400 mm

Weight

Service Weight : 2550 mm
Axle Loading/Loaded/Front : 3530 kg
Loading/Loaded/Rear : 520 kg

Axle Loading/Unloaded/Front : 1035 kg
Axle Loading/Unloaded/Rear : 1515 kg

Dimensions

Tilting Angle α/β Forward/Backward degree : 6/10
accordingly Mast Height, Lowered h1 2-stage Mast : 1995 mm
Std Free Lift h2 2-stage std. Mast,From Ground : 140 mm
Std. Lift Height h3 2-stage Std. Mast,
From Ground : 3000 mm

MastHeight, Extended h4 2-stage. Mast : 3955 mm
above all Heigt, Overhead Guard h6 : 2070 mm
Length, with std. forks L1 : 3160 mm

Length, to forks Face L2 : 2240 mm
Width, at Tyre b1 Single : 1070 mm
Forks s/e/l Thicness x Width x Length : 35 x 100 x 920 mm

additionally Fork Carriage Class ISO 2328, Type A/B/no : Class 2,A mm
Width, Fork Carriage b2 : 970 mm
Ground Clereance m1 Under Mast : 120 mm

Ground Clereance m2 at Center of Wheelbase : 130 mm
Right Angle Stacking Aisle Ast with L1000x W800 Pallet : 3560 mm
Turning Radius Wa : 1955 mm

Performance

Travel Speed (FWD) Loaded 1st/2nd : 18.5 km/h
Travel Speed (FWD) Unloaded 1st/2nd : 19.0 km/h
Lifting Speed Loaded : 620 mm/s } | { Lifting Speed Unloaded : 670 mm/s

after all Lowering Speed Loaded : 500 mm/s
Lowering Speed Unloaded : 550 mm/s
Max. Drawbar Pull Loaded : 13 KN

Max. Gradeability Loaded % : 33 %
afterward Service Brake Operation/Control : Foot/Hydraulic
Parking Brake Operation/Control : Hand/Mechanical

Steering Type : FHPS
Battery Voltage/ Capacity at 5-hour rating V/ah : 12/64 Volt/ah

Tyre

size, front ( standard tread ) : 6.9-9-10PR
size, rear : 5.0-8-8PR

Dual tyre

Tread front ( dual tread ) : 1000 mm
Overall width : 1190 mm
Service weight ( dual tread ) :2690 kg
