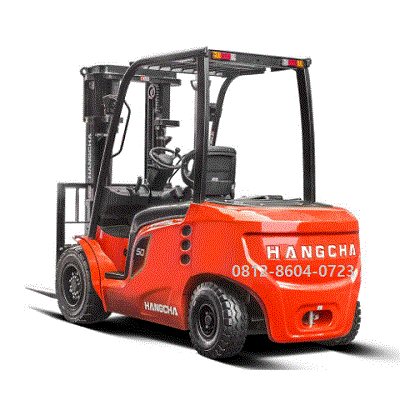

Hangcha Forklift X50 | 5 ton

Description

Hangcha Forklift X50 | 5 ton

BELIALAT.COM support penjualan unit, parts, service, rental, maintenance contract, overhaul, reconditioned Hangcha Forklift X50 | 5 ton

Hangcha Forklift X50 | 5 ton, Specifications

The Hangcha X50 (specifically from the X Series or XF Series) is a heavy-duty internal combustion forklift designed for a 5-ton (5,000 kg) lifting capacity.
It is known for its rugged construction, high-efficiency cooling systems, and ergonomic operator cabin.
Below are the technical specifications for the 5-ton diesel model, typically designated as CPCD50-X (X Series) or CPCD50-XF (XF Series).

Key Performance & Capacity

Rated Capacity 5,000 kg (5 Tons).
Load Center 600 mm.
Max. Lift Height 3,000 mm (Standard Duplex) / Up to 7,000 mm (Triplex).
Travel Speed Approx. 25–26 km/h (Laden)
Lift Speed 480–520 mm/s (Laden).
Turning Radius 3,230 mm.

Engine Options

The X50 is commonly equipped with powerful, industrial-grade engines depending on the region and emission standards:
Cummins QSF3.8: High-performance diesel with electronic controls (common in Euro/US markets).
Isuzu 6BG1: A legendary, reliable 6-cylinder diesel engine.
Deutz TCD3.6: High-torque engine often found in Stage V compliant units.
Xinchai 4D35: A common cost-effective diesel engine option.
Nissan/PSI (LPG Models): For gasoline or LPG variants (CPQYD50).

Dimensions & Weight

Service Weight: Approx. 8,100 – 8,150 kg.
Overall Width: 1,850 mm – 1,990 mm (standard vs. wide variants).
Length to Face of Forks: ~3,500 mm.
Mast Lowered Height: ~2,500 mm (Standard 3m mast).
Standard Fork Size: 1,220 mm x 150 mm x 60 mm.

Technical Features

Transmission: Hangcha uses Okamura or specialized Powershift transmissions with a floating design to reduce vibrations.
Cooling System: Equipped with an aluminum plate-fin radiator and optimized airflow to prevent overheating during heavy-duty stone or timber work.
Hydraulics: Dynamic load-sensing steering system that reduces energy loss and heat buildup.
Safety: Includes an Operator Presence System (OPS) which locks lifting and traveling if the operator leaves the seat.
Comparison Note: X Series vs. XF Series
X Series: Focuses on high efficiency and high-pressure common rail engines for heavy industrial use.
XF Series: Focuses on “Extreme Comfort” and ergonomics, featuring better dampening and lower noise levels for the operator.
Would you like me to find the specific engine performance curves or a detailed comparison between the Diesel and LPG versions?

Characteristics

Model : Electric Counterbalanced
Operator Position : Sit on Type
Load Capacity : 5000 Kg
Load Center C : 500 mm
Alternative Capacity Q2 : 1350 mm
Load Distance X : 404 mm
Wheelbase Y : 1400 mm

Weight

Service Weight : 2550 mm
Axle Loading/Loaded/Front : 3530 kg
Loading/Loaded/Rear : 520 kg

Axle Loading/Unloaded/Front : 1035 kg
Axle Loading/Unloaded/Rear : 1515 kg

Dimensions

Tilting Angle α/β Forward/Backward degree : 6/10
accordingly Mast Height, Lowered h1 2-stage Mast : 1995 mm
Std Free Lift h2 2-stage std. Mast,From Ground : 140 mm
Std. Lift Height h3 2-stage Std. Mast,
From Ground : 3000 mm

MastHeight, Extended h4 2-stage. Mast : 3955 mm
above all Heigt, Overhead Guard h6 : 2070 mm
Length, with std. forks L1 : 3160 mm

Length, to forks Face L2 : 2240 mm
Width, at Tyre b1 Single : 1070 mm
Forks s/e/l Thicness x Width x Length : 35 x 100 x 920 mm

additionally Fork Carriage Class ISO 2328, Type A/B/no : Class 2,A mm
Width, Fork Carriage b2 : 970 mm
Ground Clereance m1 Under Mast : 120 mm

Ground Clereance m2 at Center of Wheelbase : 130 mm
Right Angle Stacking Aisle Ast with L1000x W800 Pallet : 3560 mm
Turning Radius Wa : 1955 mm

Performance

Travel Speed (FWD) Loaded 1st/2nd : 18.5 km/h
Travel Speed (FWD) Unloaded 1st/2nd : 19.0 km/h
Lifting Speed Loaded : 620 mm/s } | { Lifting Speed Unloaded : 670 mm/s

after all Lowering Speed Loaded : 500 mm/s
Lowering Speed Unloaded : 550 mm/s
Max. Drawbar Pull Loaded : 13 KN

Max. Gradeability Loaded % : 33 %
afterward Service Brake Operation/Control : Foot/Hydraulic
Parking Brake Operation/Control : Hand/Mechanical

Steering Type : FHPS
Battery Voltage/ Capacity at 5-hour rating V/ah : 12/64 Volt/ah

Tyre

size, front ( standard tread ) : 6.9-9-10PR
size, rear : 5.0-8-8PR

Dual tyre

Tread front ( dual tread ) : 1000 mm
Overall width : 1190 mm
Service weight ( dual tread ) :2690 kg
