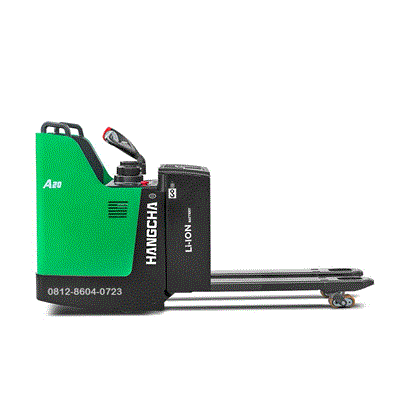

Hangcha Pallet Mover A20 | 2 ton

Description

Hangcha Pallet Mover A20 | 2 ton

The Hangcha A Series Pallet Mover (2.0 Ton) is a versatile electric warehouse solution known for its compact design and efficiency in narrow aisles.
It is typically available in two main power configurations: the Mini Walkie (Lithium-ion) for light-to-medium duty and the Basic/High Range (Lead-Acid/AC) for more intensive operations.
Below are the general specifications for the popular CBD20 (2-ton) model:

Feature Specification Details

Model CBD20-A2MC1 / CBD20-XT1S.
Load Capacity 2,000 kg (2.0 Ton).
Load Center 600 mm.
Drive Type Electric (Lithium-ion or Lead-Acid options).
Operator Type Pedestrian (Walkie).
Service Weight ~190 kg – 270 kg (including battery).
Turning Radius 1,400 mm – 1,482 mm.

Performance & Dimensions

Lifting Height: Standard 120 mm (up to 200 mm on some specialized variants).
Fork Dimensions: Standard 1150 mm (length) x 540/560/680 mm (width).
Travel Speed: 4.5 km/h – 5.0 km/h (laden).
Gradeability: 6% (laden) to 15% (unladen).
Tires: High-quality Polyurethane (PU) wheels for smooth indoor operation.

Key Features

Advanced Control: Equipped with a CURTIS Controller and CANBUS technology for precise and reliable movement.
Safety Systems: Includes three braking modes (regenerative, reverse current, and emergency parking brake) and an “anti-slope” function to prevent rolling back on ramps.
Compact Ergonomics: Features a REMA tiller head (on high-spec units) designed for one-handed operation and a “Turtle Speed” mode for safe maneuvering in very tight spaces.
Maintenance: Easy-access design with a fully opening hood and maintenance-free brushless AC or DC motors (depending on the specific sub-model).
Note: Specifications can vary slightly based on whether the unit is the “Mini” version (focused on lithium-ion portability) or the “High Range” version (focused on heavy-duty shifts).
