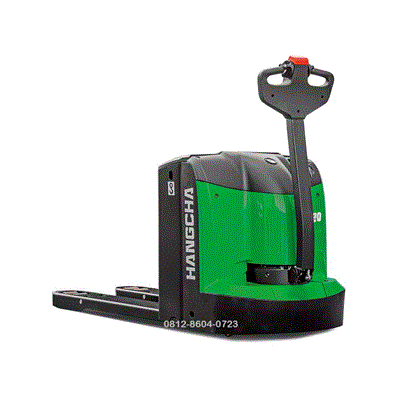

Hangcha Pallet Mover X20 | 2 ton

Description

Hangcha Pallet Mover X20 | 2 ton

The Hangcha X Series (X20) is a high-range electric pallet truck designed for intensive warehousing and logistics.
It is known for its advanced 48V system and permanent magnet synchronous motor, which offer better efficiency and performance compared to older 24V models.

Below are the primary technical specifications for the 2-ton pedestrian and stand-on variants.

Feature Specification Details

Model Designation CBD20-XT1 / CBD20-AC2-LI.
Load Capacity 2,000 kg.

Load Center 600 mm.
Drive Type Electric (Lithium-ion / Lead-acid options).

Operating Type Pedestrian (Walkie) or Stand-on (Foldable Platform).
Travel Speed (Laden/Unladen) 6.0 / 6.0 km/h (Pedestrian) | 9.0 / 9.5 km/h (Stand-on).

Lift Height 120 mm – 200 mm (depending on specific model/forks).
Lowered Fork Height 80 mm – 85 mm.

Fork Dimensions (Standard) 50 x 160 x 1150 mm.
Overall Width 540 mm or 680 mm (standard fork spreads).
Turning Radius ~1400 mm (Pedestrian) | ~1620 mm (Stand-on).

Key Performance Features

48V System: Unlike standard 24V pallet movers, the X series uses a 48V Permanent Magnet Synchronous Motor (PMSM).3 This generates less heat and provides higher torque, improving its ability to handle ramps (gradeability).

Lithium-Ion Technology: Most X20 units are equipped with high-performance Li-ion batteries (typically 48V/105Ah). This allows for opportunity charging (full charge in ~2 hours) and zero maintenance.

Advanced Control: Features a VCU (Vehicle Control Unit) and a smart tiller head with a “turtle speed” function for precise maneuvering in tight spaces.

Safety & Ergonomics

Regenerative Braking: Automatically recovers energy when decelerating and prevents the truck from sliding on slopes.
Electronic Lifting Limit: Protects the motor and hydraulic system from damage when the forks reach maximum height.
Suspension: Stand-on versions feature a shock-absorbing platform to reduce operator fatigue during long shifts.
