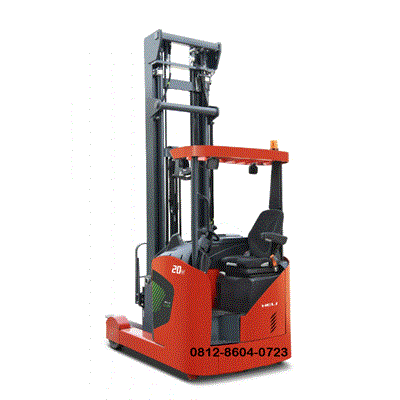

Heli Electric Reach CQD12 | 1.2 ton

Description

Heli Electric Reach CQD12 | 1.2 ton

The Heli CQD12 is a high-performance electric sit-down reach truck from the G2 Series, specifically designed for narrow-aisle warehouse operations.
It is known for its compact turning radius and advanced AC motor technology.
Below are the technical specifications for the 1.2-ton (1,200 kg) model:

Technical Specifications

Model Designation CQD12-GB2S (G2 Series).
Rated Capacity 1,200 kg (1.2 Ton)
Load Center 600 mm.
Power Type Electric (Battery).
Operator Type Sit-down.
Wheelbase 1,385 mm.
Travel Speed (Loaded/Unloaded) 11 / 12 km/h.
Lifting Speed (Loaded/Unloaded) 0.38 / 0.58 m/s.
Gradeability (Loaded/Unloaded) 10% / 15%.

Dimensions & Maneuverability

Turning Radius: 1,625 mm (very agile in tight spaces).
Overall Length (without forks): 1,760 mm.
Overall Width: 1,120 – 1,130 mm.
Reach Distance: 509 mm.
Aisle Width (1000×1200 pallet): Approx. 2,733 mm.
Overhead Guard Height: 2,215 mm.

Battery & Performance

Voltage/Capacity: 48V / 310Ah (Standard Lead-Acid) or 80V (Lithium-ion options available).
Motor Type: Full AC System (Drive, Lift, and Steering motors).
Steering: EPS (Electric Powered Steering) with 180 circ/360 circ mode switching.
Braking: Electromagnetic and regenerative braking for energy recovery.

Key Features

ZAPI Controller: Uses high-end Italian ZAPI AC controllers for precise handling.
Mast Technology: Available with Wide View Triplex Full Free masts, capable of reaching heights up to 8.5 meters or more depending on the configuration.
Safety Systems: Features automatic deceleration during turns, mast buffering (limit switches), and an Operator Presence System (OPS).
Ergonomics: Adjustable seat, thumb-switch hydraulic controls, and a multi-function LCD dashboard.
Note: Specifications can vary slightly based on the specific mast choice (Duplex vs. Triplex) and battery type (Lead-Acid vs. Lithium).
