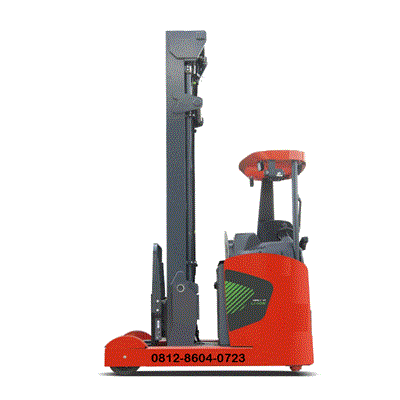

Heli Electric Reach CQD14 | 1.4 ton

Description

Heli Electric Reach CQD14 | 1.4 ton

The Heli CQD14 is a 1.4-ton electric reach truck designed specifically for narrow-aisle warehouse operations.
It is available in different configurations, including the G Series (often stand-on) and the G2 Series (often sit-down), as well as Double Deep models.
Below are the primary technical specifications for the standard CQD14 unit:

Technical Specifications

Model CQD14.
Rated Capacity 1,400 kg (1.4 Ton).
Load Center 600 mm.
Power Source Electric (Lead-Acid or Lithium-Ion options).
Operator Type Stand-on / Seated (Depends on sub-model).
Tire Type Polyurethane.

Performance & Dimensions

Lifting Height: Typically ranges from 3,000 mm to 7,500 mm (3m to 7.5m) depending on the mast configuration (2-stage or 3-stage full free lift).
Travel Speed (Loaded/Unloaded): Approximately 10 / 11 km/h.
Lifting Speed (Loaded/Unloaded): Approx. 0.36 / 0.56 m/s.
Turning Radius: Small footprint, typically around 1,675 mm to 1,750 mm.
Aisle Width (Pallet 1000×1200): Approximately 2,780 mm to 2,950 mm (requires specific maneuvering space).
Gradeability (Loaded/Unloaded): 10% / 15%.

Battery & Electrical

Battery Voltage: 48V.
>Battery Capacity: Standard options include 310Ah, 360Ah, or 400Ah (Lithium-ion versions offer faster charging and longer life cycles).
Controllers: High-quality ZAPI or Curtis AC controllers (depending on region/spec).

Core Features

AC Drive System: Maintenance-free brushless motors providing smooth acceleration and regenerative braking.
EPS (Electric Power Steering): Provides light and precise steering, essential for navigating tight racking.
Safety Systems: Features automatic speed reduction at high lift heights, emergency power-off, and buffering for mast reaching/lowering.
Ergonomics: Adjustable backrests (stand-on) or seats, thumb-switch controls, and an interactive LCD display for battery and fault monitoring.
Note: Dimensions and lift capacities may vary slightly if the unit is a Double Deep variant (CQD14-X2), which uses a pantograph to reach two pallets deep into racking.
