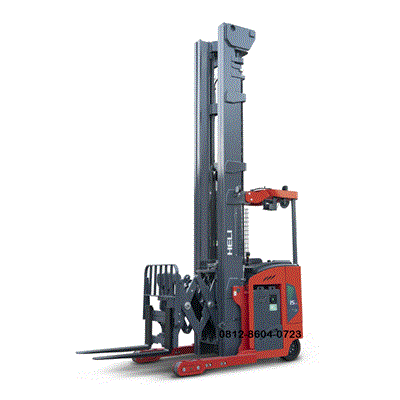

Heli Electric Reach CQD14X2 | 1.4 ton

Description

Heli Electric Reach CQD14X2 | 1.4 ton

The Heli CQD14X2 is a G-Series electric reach truck specifically designed for narrow-aisle warehouse operations.
A key feature of the “X2” designation is its Double Deep (Pantograph) reach capability, allowing it to reach two pallet positions deep into racking.
Below are the technical specifications for the 1.4-ton (3,000 lbs) lithium-ion model:

Core Performance & Capacity

Rated Capacity: 1,400 kg (approx. 3,000 lbs).
Load Center: 600 mm (24 in).
Power Type: Electric (Lithium-ion / Lead Acid options).
Voltage: 48V (Standard for high-efficiency G-Series).
Travel Speed (Laden/Unladen): 10 / 11 km/h.
Lift Speed (Laden/Unladen): 330 / 520 mm/s.

Mast & Lifting (Triple Stage ZSM)

Typical configurations for this unit often feature a 3-stage full free lift mast:
Max Lift Height: Options range from 5,025 mm to 7,620 mm.
Free Lift: Approx. 2,526 mm (depending on mast height).
Mast Lowered Height: Approx. 1,490 mm (for standard 5.3m mast).
Reach Stroke (Pantograph): 1,080 mm (allows for double-deep stacking).

Dimensions & Chassis

Overall Width: 1,090 mm.
Overall Length (to fork face): Approx. 1,954 mm.
Turning Radius: Approx. 1,874 mm.
Aisle Width (1200×1000 pallet): Approx. 2,713 mm – 3,033 mm.
Tire Type: Polyurethane (PU).

Key Features

Double Deep Reach: Uses a pantograph mechanism to store and retrieve pallets in double-deep racking, increasing storage density.
Operator Interface: Equipped with a ZAPI smart display and a multi-function joystick for precise control.
Visibility: Features a wide-view mast and a repositioned hydraulic pump to reduce noise and improve line-of-sight.
Safety Systems: Includes automatic deceleration during turns, an Operator Presence System (OPS), and electromagnetic braking.
Note: Specifications can vary slightly based on the specific configuration (GA2RLI vs. GB2RLI). The GA2RLI is the most common lithium-powered variant in this series.
