Heli Electric Reach CQD16X1 | 1.6 ton

Description

Heli Electric Reach CQD16X1 | 1.6 ton

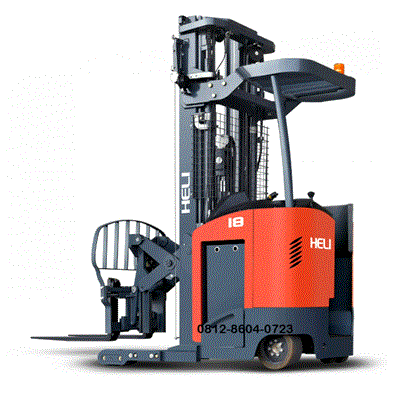

The Heli CQD16X1 is a 1.6-ton electric reach truck from the G2/G series, specifically designed for high-density warehousing and narrow-aisle applications. It is available in both standard lead-acid and lithium-ion (Li-ion) configurations.
Below are the primary technical specifications for the unit:

Performance & Capacity

Rated Capacity: 1,600 kg (1.6 tons).
Load Center: 600 mm.
Travel Speed (Loaded/Unloaded): Approx. 10.5 – 11.0 km/h.
Lifting Speed (Loaded/Unloaded): 0.35 – 0.50 m/s.
Gradeability (Loaded/Unloaded): 10% / 15%.

Mast & Lifting Heights

The CQD16X1 typically utilizes a 3-stage Full Free Lift (Triplex) mast.
Standard Max Lift Height: 5,330 mm (Standard) – can be configured up to 9,500 mm.
Mast Lowered Height: Approx. 2,526 mm (for the 5.3m mast).
Free Lift: Approx. 1,800 mm (depending on mast type).
Tilt (Forward/Backward): 3 circ / 4 circ.

Dimensions & Maneuverability

Overall Length (without forks): 1,815 mm – 1,840 mm.
Overall Width: 1,090 mm.
Turning Radius: 1,720 mm – 1,750 mm.
Aisle Width (Ast): Approx. 2,750 mm – 2,900 mm (with 1000×1200 pallet).
Ground Clearance: 98 mm.

Power & Electrical System

System Voltage: Available in 36V or 48V systems.
Battery Capacity: * Lead-Acid: Typically 48V/500Ah.
Li-ion: Typically 48V/404Ah.
Drive Motor: AC technology (approx. 7.0 kW – 11 kW depending on specific variant).
Controller: ZAPI AC Controller (standard).

Key Features

Operator Position: Stand-on (Seated versions available in different CQD series).
Tires: Polyurethane (PU) for high durability on warehouse floors.
Safety: Automatic speed reduction on turns, electromagnetic braking, and an Emergency Power-Off switch.
Control: Multi-function joystick for simultaneous reach, lift, and tilt functions.
