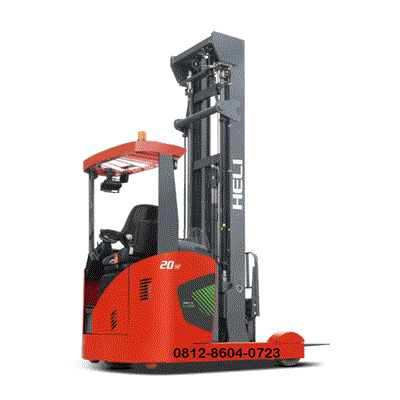

Heli Electric Reach CQD20 | 2 ton

Description

Heli Electric Reach CQD20 | 2 ton

The Heli CQD20 is a 2-ton electric reach truck designed for high-density warehouse operations.
It is commonly available in two main configurations: the G2 Series (Sit-down) and the Stand-on version.
Here are the technical specifications for the most popular model, the HELI CQD20-GB2S (G2 Series).

Core Technical Specifications

Rated Capacity 2,000 kg (2 Ton).
Load Center 600 mm.
Power Type Electric (Battery).
Operator Type Seated (GB2S) / Stand-on (GC2R).
Max Lift Height Standard: 4,600 mm (Up to 12,500 mm optional).
Travel Speed 12 km/h (Loaded) / 14 km/h (Unloaded).
Turning Radius 1,751 mm – 1,901 mm (depending on configuration).

Performance & Motors

Driving Motor: 6.0 kW – 8.0 kW (AC Motor).
Lifting Motor: 11.0 kW – 12.5 kW (High-torque AC).
Steering Motor: 0.4 kW (Electronic Power Steering – EPS).
Climbing Ability: 10% (Loaded) / 15% (Unloaded).
Lifting Speed: Approx. 300 mm/s (Loaded) / 550 mm/s (Unloaded).

Dimensions & Weight

Overall Width: 1,270 mm.
Overall Length (without forks): ~1,942 mm.
Fork Dimensions: 40 x 122 x 1,150 mm (Standard).
Aisle Width (Pallet 1000×1200): Approx. 2,800 – 2,900 mm.
Service Weight: Approx. 3,500 – 4,450 kg (including battery).

Battery Options

Lead-Acid: 48V / 500Ah – 775Ah (Traditional, requires maintenance).
Lithium-Ion (Li-ion): 80V / 272Ah (Maintenance-free, supports opportunity charging).

Key Features

Electronic Power Steering (EPS): Provides effortless maneuverability in tight aisles.
ZAPI Controller: Uses industry-standard Italian ZAPI controllers for precise motor management.
Mast Technology: Features a wide-view mast with buffering technology to reduce vibration during high-altitude lifting.
Regenerative Braking: Recharges the battery during deceleration to extend shift life.
Note: Lifting capacity decreases as height increases. For example, at a height of 12.5 meters, the “residual capacity” will be significantly lower than 2,000 kg.
