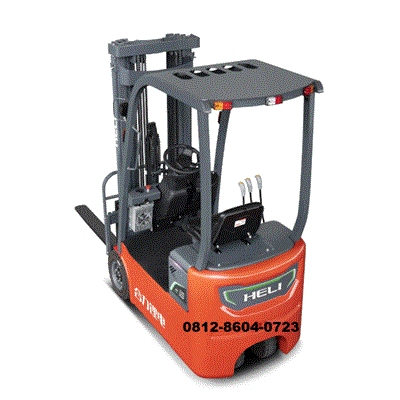

Heli Forklift CPD10SQ | 1 ton

Description

Heli Forklift CPD10SQ | 1 ton

The Heli CPD10SQ is a compact, 3-wheel electric counterbalance forklift from the H4 Series.
It is specifically designed for high maneuverability in narrow aisles and indoor warehouse environments.
Below are the key technical specifications for the 1-ton (1,000 kg) unit:

Performance & Capacity

Rated Capacity: 1,000 kg (1 Ton).
Load Center: 500 mm (standard).
Travel Speed (Laden/Unladen): 10 / 12 km/h.
Lifting Speed (Laden/Unladen): 240 / 380 mm/s.
Gradeability (Laden): 10% – 15% (depending on battery configuration).

Dimensions & Weight

Overall Length (with forks): Approx. 2,460 mm.
Overall Width: 900 mm – 950 mm (compact design for narrow aisles).
Standard Lift Height: 3,000 mm (3 meters).
Turning Radius: Approx. 1,360 mm – 1,492 mm (extremely tight turning circle).
Service Weight: Approx. 1,930 kg (including battery).

Power & Battery

Power Type: Electric (Lead-Acid or Lithium-ion options available).
Battery Voltage: 24V.
Standard Capacity: 250 Ah – 300 Ah (Lithium options often available up to 480 Ah for multi-shift use).
Motor Type: AC Drive Motor (typically IP54 rated for dust/water protection).

Key Features

3-Wheel Configuration: Features a rear-wheel steering system with double wheel support for superior stability and a “turn-on-the-spot” radius.
Safety Systems: Equipped with an OPS (Operator Presence Sensing) system that locks hydraulic and travel functions when the operator leaves the seat.
Ergonomics: Spacious legroom, adjustable steering column, and a wide-view mast to improve operator visibility.
On-board Charger: Often comes with an integrated charger, allowing it to be plugged into standard power outlets.
