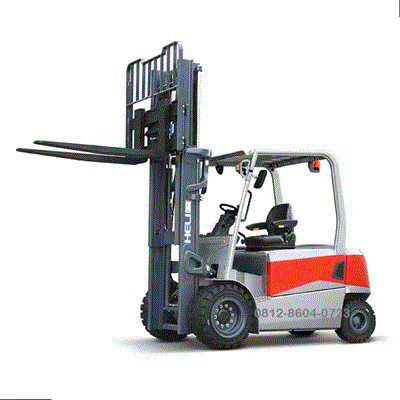

Heli Forklift CPD40 | 4 ton

The Heli CPD40 is a 4-ton electric counterbalance forklift, most commonly found in the G3 Series (featuring Lithium-ion technology).
It is designed to bridge the gap between heavy-duty internal combustion engines and the efficiency of electric power.
Below are the key technical specifications for the Heli CPD40:

Core Performance

Rated Capacity: 4,000 kg (4 Ton).
Load Center: 500 mm.
Power Type: Electric (Lithium-ion or Lead-acid options).
Driving Mode: Sit-on / Seated.
Travel Speed (Laden/Unladen): ~14 / 15 km/h.
Lift Speed (Laden/Unladen): ~310 / 450 mm/s.
Gradeability (Laden/Unladen): 17% / 27%.

Physical Dimensions

Max. Lifting Height (Standard) 3,000 mm.
Overall Length (without forks) 2,920 mm.
Overall Width 1,350 mm.
Overhead Guard Height 2,275 mm.
Turning Radius (External) 2,580 mm.
Wheelbase 1,960 mm.
Ground Clearance (at mast) 140 mm.
Battery & Electrical (G3 Li-ion Model).
Standard Voltage: 80V.
Standard Capacity: 542Ah (Optional up to 810Ah).
Charging Time: 2–3 hours for a full charge (Opportunity charging supported).
Operating Temp: High performance between -25 celcius and 55 celcius.

Key Features & Safety

Mast Type: Standard is 2-stage wide view; 3-stage full free lift (Triplex) available for container work.
Braking System: Hydraulic / Oil wet brakes for superior stopping power and low maintenance.
Operator Comfort: Full suspension seat, automatic steering slowdown, and a color LCD diagnostic display.
Stability: Middle-positioned battery for a lower center of gravity and higher lateral stability.
Note: If you are looking for the diesel equivalent, the model code is CPCD40. It uses similar physical dimensions but is powered by engines like the Mitsubishi S4S or Deutz TCD.
