Heli Forklift CPD60 | 6 ton

Description

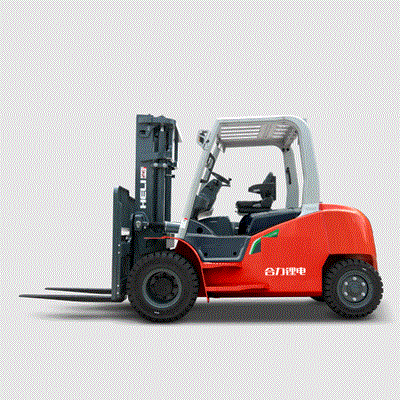

Heli Forklift CPD60 | 6 ton

The Heli CPD60 is a heavy-duty electric counterbalance forklift from the G3 series, designed to offer a zero-emission alternative to 6-ton diesel units.
It is specifically built for high-intensity operations like manufacturing, logistics centers, and heavy material handling.
Below are the primary technical specifications for the 6-ton (6,000 kg) model:

General Characteristics

Model: CPD60 (G3 Series).
Load Capacity: 6,000 kg (6 Tons).
Load Center: 600 mm.
Power Type: Electric (Lithium-ion or Lead-acid).
Operator Type: Seated.

Performance & Motors

Drive Motors: Dual-drive AC motors (17.1 kW 2).
Lift Motor: 26.5 kW 2 (high-torque AC system).
Travel Speed (Laden/Unladen): 14 / 15.5 km/h.
Lifting Speed (Laden/Unladen): 0.30 / 0.395 m/s.
Max Gradeability (Laden): Up to 18%.
Braking System: Wet negative braking (maintenance-free) with automatic parking brake.

Dimensions & Weight

Standard Lift Height: 3,000 mm (Up to 7,000 mm with optional masts).
Overall Width: 2,045 mm.
Overall Length (to fork face): 3,437 mm.
Turning Radius: 3,050 mm.
Overhead Guard Height: 2,491 mm.
Total Weight (without battery): Approx. 9,170 – 9,720 kg.

Battery & Charging

The CPD60 is most commonly paired with high-capacity 80V systems.
Lithium-Ion Options: 606Ah (Standard), 813Ah, or 1084Ah (Heavy Duty).
Lead-Acid Options: 840Ah.
Charging: Supports “Opportunity Charging” (quick charges during breaks) and standard dual-gun fast charging for lithium models.

Key Features

Stability: Equipped with dual front tires as standard for better load distribution.
Safety: Includes the OPS (Operator Presence System), turning speed limiters, and mast buffering to prevent impact at lift limits.
Durability: Rated for operation in cold storage environments (down to -20°C).
