Heli Forklift CPQY10 | 1 ton

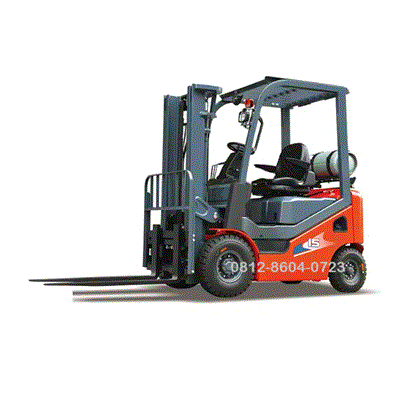

The Heli CPQY10 is a 1-ton (1,000 kg) counterbalanced forklift known for its versatility, typically featuring a Dual Fuel (Gasoline/LPG) engine and a manual transmission.
Below are the primary specifications for this unit based on the standard G-Series configuration:

Technical Specifications

Model CPQY10.
Power Type Dual Fuel (Gasoline / LPG).
Transmission Manual (Mechanical).
Rated Capacity 1,000 kg (1 Ton).
Load Center 500 mm.
Operator Type Driver Seated.

Dimensions & Performance

Max. Lifting Height: 3,000 mm (Standard 2-stage mast).
>Overall Width: 1,070 mm.
>Overall Length (without forks): ~2,171 mm.
>Overall Height (to overhead guard): 2,140 mm.
Min. Turning Radius: ~1,970 mm.
Fork Dimensions: 770 x 100 x 32 mm (standard).
Mast Tilt Angle: 6° Forward / 12° Backward.

Engine & Chassis

Engine Model: Often equipped with the Nissan K15 or Heli H15 engine.
Rated Power: Approx. 23.6 kW @ 2,400 rpm.
Tires: Pneumatic (Standard).
Front: 6.50-10-10PR.
Rear: 5.00-8-8PR.
Service Weight: Approx. 2,150 kg (unloaded).
Note: The “Y” in CPQY typically denotes a manual transmission with Dual Fuel. If the model was CPQYD, the “D” would signify an automatic (power shift) transmission.
