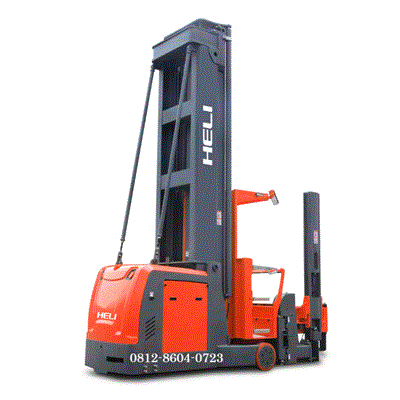

Heli Order Picker OPD15 | 1.5 ton

Description

Heli Order Picker OPD15 | 1.5 ton

The Heli OPD15 is a high-performance, Very Narrow Aisle (VNA) Man-Down Order Picker (often categorized as a 3-way pallet stacker).
It is specifically engineered for high-density warehouses where maximizing floor space is a priority.
Below are the primary technical specifications for the 1.5-ton unit:

Core Specifications

Model OPD15.
Rated Capacity 1,500 kg.
Load Center 600 mm.
Operator Type Seated / Man-Down.
Max Lift Height Up to 10,500 mm (Standard range: 5,000–9,500 mm).
Travel Speed 8.0 km/h (Laden) / 8.5 km/h (Unladen).
Turning Radius 2,170 mm.
Aisle Width (Pallet 1200×800) Approx. 1,700 mm.

Dimensions & Weight

Overall Length: 3,340 mm.
Overall Width: 1,260 mm / 1,520 mm (depending on configuration).
Fork Dimensions: 45 x 125 x 1,250 mm.
Lateral Reach (Fork Extension): 1,300 mm.
Service Weight (incl. battery): Approximately 7,510 kg

Technical Performance

Drive System: Full AC Drive Control Technology for high efficiency and lower maintenance.
Steering: EPS (Electric Power Steering) for effortless maneuvering in tight spaces.
Hydraulics: Thumb-operated hydraulic handle for precise load positioning.
Braking: Dual system featuring regenerative braking and an electric spring-loaded parking brake.
Special Function: 180-degree rotating forks allow the unit to pick up goods from both sides of the aisle without turning the vehicle.

Key Features

ZF Gearbox: Utilizes high-quality German-engineered transmission for durability.
Smart Systems: Includes a multifunctional LCD instrument panel (displaying battery status, speed, and fault codes) and CAN Bus communication.
Safety: Equipped with an interlock control system for height and speed, and optional laser anti-collision sensors.
Battery: Side-pull battery design for quick multi-shift replacements; standard high-capacity lead-acid with Lithium-ion options often available.
Note: Performance data like lift and lowering speeds can vary slightly based on the specific mast height chosen (Triplex vs. Duplex).
