Heli Order Picker OPL10S | 1 ton

Description

Heli Order Picker OPL10S | 1 ton

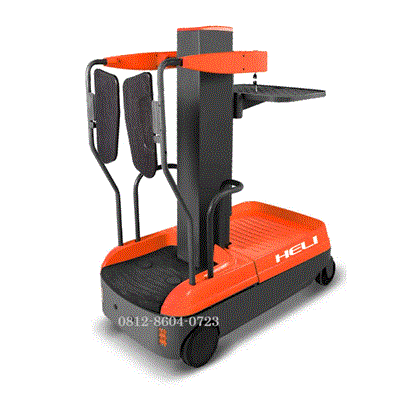

The Heli OPL10S is a low-level electric order picker designed for efficient picking in narrow aisles and warehouse environments.
It features a standing platform for the operator and is known for its maneuverability and ergonomic safety features.
Below are the technical specifications for the 1-ton model:

Core Technical Specifications

Model OPL10S (or OPL10S-Li for Lithium version).
Rated Capacity 1,000 kg (1 Ton).
Load Center 600 mm.
Platform Lift Height 1,200 mm (1.2m).
Maximum Picking Height Approx. 2,700 mm.
Loading Tray Capacity 60 kg.
Service Weight (inc. battery) ~1,650 kg.

Performance & Motors

Travel Speed (Laden/Unladen): 7.7 / 7.8 km/h.
Lift Speed (Laden/Unladen): 0.1 / 0.15 m/s.
Lowering Speed (Laden/Unladen): 0.08 / 0.07 m/s.
Gradeability (Laden/Unladen): 8% / 15%.
Drive Motor: 1.5 kW (AC).
Lift Motor: 2.2 kW.

Dimensions

Overall Length: 2,790 mm.
Overall Width: 812 mm.
Mast Lowered Height: 1,300 mm.
Mast Extended Height: 2,360 mm.
Fork Dimensions: 35 x 100 x 1,070 mm.
Turning Radius: 1,535 mm.
Aisle Width (1000×1200 pallet): ~3,157 mm.

Battery & Electrical

Battery Voltage/Capacity: 24V / 450Ah (Lead-Acid) or Lithium-Ion options available.
Controller: CURTIS AC Controller.
Braking System: Combined Regenerative and Electromagnetic braking.
Extra Features: Includes a USB charging port on the control panel for devices.

Key Features

Electronic Power Steering (EPS): Provides effortless maneuverability in tight warehouse spaces.
Dual Controls: Features forward/backward buttons located on the backrest, allowing the operator to adjust the machine’s position while standing on the floor or platform.
Safety: Standard guardrails and an automatic speed reduction when the platform is elevated.
Maintenance: Side-way battery design for quick exchange or maintenance.
