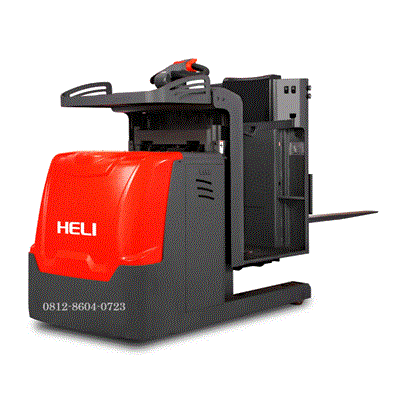

Heli Order Picker OPS15 | 1.5 ton

Description

Heli Order Picker OPS15 | 1.5 ton

The Heli OPS15 is a high-level electric order picker designed for narrow-aisle warehouse operations.
With a 1.5-ton (1,500 kg) capacity and a robust 3-stage mast, it is built for stability at significant heights.
Below are the primary technical specifications for the unit:

Performance & Capacity

Rated Load Capacity: 1,500 kg (approx. 3,300 lbs).
Load Center: 600 mm.
Maximum Lift Height: Options of 5,000 mm, 7,000 mm, or 9,000 mm.
Max. Extended Height: Up to 11,230 mm (with 9m mast).
Travel Speed (Laden/Unladen): 7.7 / 8.0 km/h.
Gradeability (Laden/Unladen): 5% / 10%.

Electrical System

Battery Voltage/Capacity: 24V / 770Ah (Standard) or up to 1100Ah (High Capacity).
Drive Motor: 4.5 kW (AC).
Lift Motor: 7.5 kW (AC).
Controller: CURTIS AC Controller.
Battery Design: Side-extraction (for quick swaps and easy maintenance).

Dimensions & Weight

Overall Length: 3,200 mm.
Overall Width: 1,100 mm / 1,352 mm (depending on configuration).
Turning Radius: 1,800 mm.
Aisle Width (Pallet 1000×1200): Approx. 1,400 mm.
Service Weight: 3,870 kg (including battery).
Fork Dimensions: 45 / 100 / 1,220 mm

Key Features

Safety: Automatic deceleration during turns and at high lift levels; electromagnetic braking for smooth stopping.
Ergonomics: Electric Power Steering (EPS) for low-effort maneuvering and an integrated control handle for one-handed operation of travel and lift functions.
Stability: Low center of gravity design and German-imported mast steel for minimal sway at full extension.
