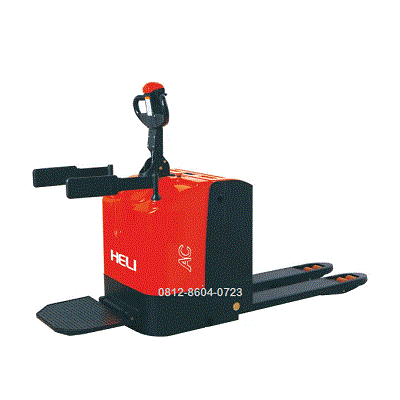

Heli Pallet Mover CBD20 | 2 ton

Description

Heli Pallet Mover CBD20 | 2 ton

The Heli CBD20 is a versatile 2-ton electric pallet mover that comes in several configurations depending on your specific needs (e.g., pedestrian/walkie vs. ride-on platform).
The most common version in industrial settings is the CBD20-460, which is a high-performance ride-on model. Below are the key specifications for that unit:

Technical Specifications

Rated Capacity: 2,000 kg (2 Tons).
Load Center: 600 mm.
Travel Speed (Laden/Unladen): 5.0 / 5.0 km/h (standard) up to 6.0 km/h on some configurations.
Lift Speed (Laden/Unladen): 30 / 35 mm/s.
Gradeability (Laden/Unladen): 5% / 7%.

Dimensions & Weight

Fork Dimensions: 50 x 185 x 1150 mm (standard).
Overall Width: 790 mm.
Overall Length: 1916 mm (platform folded) / 2333 mm (platform extended).
Turning Radius: 1746 mm (platform up) / 2158 mm (platform down).
Service Weight: ~840 kg (including battery).

Electrical System

Drive Motor: 1.5 kW (AC Maintenance-free).
Lift Motor: 1.2 kW (DC).
Battery Voltage/Capacity: 24V / 270Ah (Lead-acid is standard, Lithium-ion often optional).
Controller: Curtis (USA) or Zapi (Italy) depending on the specific regional build.

Key Features

Power Steering: Equipped with Electronic Power Steering (EPS) for effortless maneuvering.
Safety: Automatic speed reduction during cornering, emergency reverse “belly” button, and electromagnetic braking.
Design: Side-loading battery for quick multi-shift swaps and a foldable operator platform with protective side arms.
Note: If you are looking at the CBD20J-Li3 (the “Mini” or “Walkie” version), it is much lighter (~150 kg) and uses a 48V/20Ah Lithium battery, designed for tight spaces like delivery trucks rather than heavy warehouse duty.
