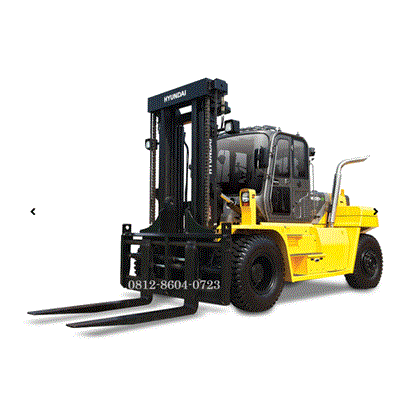

Hyundai Forklift 110D-9 | 11 ton

Description

Hyundai Forklift 110D-9 | 11 ton

The Hyundai 110D-9 is a powerhouse in the heavy-duty diesel forklift category. Part of the -9 series, it’s designed with a focus on fuel efficiency, operator comfort, and high-torque performance for demanding industrial environments.
Here is the technical breakdown for the 11 ton model:

Performance & Capacity

Load Capacity 11,000 kg (11 Tons).
Load Center 600 mm.
Power Type Diesel.
Travel Speed (Full Load) 28.5 km/h.
Gradeability (Full Load) 42.1%.

Engine & Drivetrain

The heart of this machine is built for endurance and compliance with modern emission standards.
Engine Model: Cummins QSB6.7.
Engine Output: 122 kW (163 hp) @ 2,300 rpm.
Torque: 732 Nm @ 1,500 rpm.
Displacement: 6,700 cc.
Transmission: Fully automatic ZF power shift transmission (3 speeds forward / 3 speeds reverse).
Brake System: Wet Disc Brakes (virtually maintenance-free and enclosed to prevent contamination).

Dimensions & Weight

Overall Length (to face of forks): 4,310 mm.
>Overall Width: 2,450 mm.
>Overall Height (to top of overhead guard): 2,610 mm.
Turning Radius: 3,960 mm.
Service Weight: Approx. 14,350 kg.

Key Features

Load Indicator System: Provides real-time weight feedback to prevent overloading (optional but common in this series).
Operator Cabin: Features a tilting cabin for easy engine access, a high-definition color LCD monitor, and an adjustable Grammer suspension seat.
Safety Tech: Includes a rear-view camera, auto-parking brake, and an Operator Presence Sensing System (OPSS) which restricts hydraulic movement if the driver isn’t seated.
Maintenance: Features an automatic cabin tilting system that allows 65-degree access to the powertrain for quick servicing.

Notable Advantages

The 110D-9 stands out because of its high-torque at low RPMs, which is ideal for heavy lifting on slopes or uneven terrain without burning excessive fuel. It also features “Engine Modes” (Standard vs. Power) allowing the operator to prioritize fuel economy or maximum performance depending on the task.
