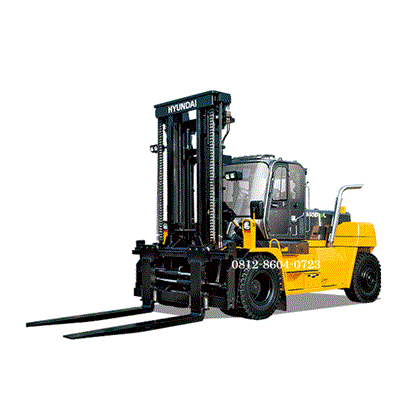

Hyundai Forklift 160D-9L | 16 ton
Hyundai Forklift 160D-9L | 16 ton
Capacity & Dimensions
The “L” designation is critical here, as it signifies a 1,200 mm load center, compared to the standard 600 mm found on smaller models.
Load Capacity: 16,000 kg (16 Ton).
Load Center: 1,200 mm.
Service Weight: Approx. 23,954 kg (varies by mast).
Turning Radius: 5.22 meters.
Overall Width: 2,540 mm.
Overall Length (to fork face): 5,564 mm.
Wheelbase: 3,750 mm (Long wheelbase for better weight distribution).
Description
Hyundai Forklift 160D-9L | 16 ton
The Hyundai 160D-9L is a heavy-duty diesel forklift designed for high-capacity material handling, specifically featuring a long wheelbase (L) for enhanced stability when carrying 16-ton loads at an extended load center.
Below are the primary technical specifications for this unit:
Engine & Performance
The heart of the 160D-9L is a high-torque Cummins engine designed to meet strict emission standards while maintaining fuel efficiency.
Feature Specification;
Engine Model Cummins QSB 6.7 (6-Cylinder, Turbocharged).
Rated Power 122 kW (164 HP) @ 2,300 RPM.
Max Torque 74.7 kgf·m @ 1,500 RPM.
Travel Speed 35.2 km/h (Unloaded).
Max Gradeability 33% (Loaded).
Transmission ZF Full-automatic (3 Forward / 3 Reverse).
Capacity & Dimensions
The “L” designation is critical here, as it signifies a 1,200 mm load center, compared to the standard 600 mm found on smaller models.
Load Capacity: 16,000 kg (16 Ton).
Load Center: 1,200 mm.
Service Weight: Approx. 23,954 kg (varies by mast).
Turning Radius: 5.22 meters.
Overall Width: 2,540 mm.
Overall Length (to fork face): 5,564 mm.
Wheelbase: 3,750 mm (Long wheelbase for better weight distribution).
Mast & Hydraulics
Standard configurations usually feature a Simplex (2-stage) mast, but Triplex options are common for lower overhead clearance.
Lift Height (Standard): 3,020 mm (3.0m).
Mast Tilt: 15° Forward / 10° Backward.
Lifting Speed: 0.33 m/s (Loaded).
Lowering Speed: 0.43 m/s (Loaded).
Brake System: Wet Disc Brakes (virtually maintenance-free, enclosed against dust/water).
Key Features & Technology
Tilting Cabin: The entire operator cab can tilt electrically (approx. 53–65°) to the side for easy access to the engine and powertrain.
OPSS (Operator Presence Sensing System): Automatically locks mast and drive movements if the operator leaves the seat.
Load Weight Indicator: (Optional/Standard depending on region) Provides real-time weight monitoring on the digital cluster.
Ergonomics: Features a 4.3-inch color LCD display, adjustable steering column, and optional climate control (FATC).
Note: Specifications can vary slightly based on the year of manufacture (Tier 4 vs. Stage V engines) and regional equipment packages.
