Hyundai Forklift 20B-9 | 2 ton

Description

Hyundai Forklift 20B-9 | 2 ton

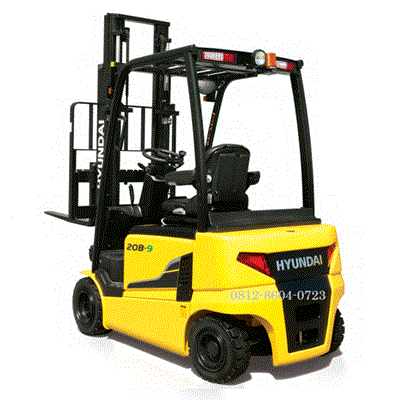

The Hyundai 20B-9 is a 2-ton (2,000 kg) electric 4-wheel counterbalance forklift designed for high maneuverability in confined indoor spaces.
Part of Hyundai’s “9-Series,” it is known for its dual drive motor system and advanced ergonomic features.

Core Specifications

Load Capacity 2,000 kg (2.0 ton).
Load Center 500 mm.
Power Type Electric (48V).
Traction Motor Dual AC motors (typically 4.7 kW x 2).
Lift Motor 14.0 kW AC.
Turning Radius 1,810 mm.
Service Weight ~3,480 kg (including battery).

Performance & Dimensions

Travel Speed: 16 km/h (loaded) / 17 km/h (unloaded).
Lift Speed: 410 mm/s (loaded) / 600 mm/s (unloaded).
Lifting Height: Standard heights range from 3,300 mm to 7,000 mm depending on the mast configuration (Simplex, Duplex, or Triplex).
Aisle Width: Approximately 3,350–3,495 mm for standard pallets (1,000 x 1,200 crossways).
Overall Width: 1,105 mm.
Overhead Guard Height: 2,065 mm.

Key Features & Technology

Dual Drive System: Two separately controlled drive motors allow for a smaller turning radius and prevent wheel spin on uneven surfaces.
ZAPI Controller: Features an IP65-rated high-frequency controller that offers smooth control and protects the system from moisture and overheating.
Ergonomics: Includes a 3.5-inch or 4.3-inch LCD color monitor, an adjustable steering column, and a Grammer™ full suspension seat.

Safety Systems:

Curve Control: Automatically limits speed based on the turning radius.
Anti-Roll Back: Prevents the unit from rolling backward on ramps.
OPSS (Optional): Operator Presence Sensing System that locks mast/drive movements if the operator leaves the seat.
Maintenance: Features side-loading battery removal (optional) and wet disc brakes that are virtually maintenance-free.

Battery Options

The unit typically runs on a 48V system. Common battery capacities include:
Standard: 48V / 585 Ah.
High Capacity: Options up to 750 Ah for extended shifts.
