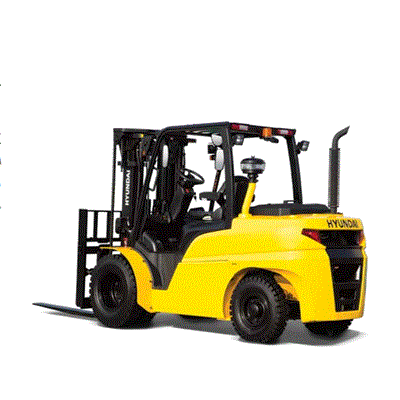

Hyundai Forklift 45D-9 | 4.5 ton

Description

Hyundai Forklift 45D-9 | 4.5 ton

BELIALAT.COM sales, unit, parts, service, rental, maintenance contract, overhaul, reconditioned Hyundai Forklift 45D-9 | 4.5 ton

The Hyundai 45D-9 is a powerhouse in the mid-to-heavy range of diesel forklifts.
It’s known for balancing high lifting capacity with the fuel efficiency and “car-like” comfort that Hyundai’s 9-series is famous for.
Here are the key specifications for the 4.5-ton model:

Core Performance

Model 45D-9.
Load Capacity 4,500 kg (approx. 9,920 lbs).
Load Center 600 mm.
Power Type Diesel.
Travel Speed (Full Load) 24.1 km/h.
Gradeability (Full Load) 41.5%.

Engine & Drivetrain

The 45D-9 typically features a high-torque engine designed to meet stringent emission standards while maintaining low noise levels.
Engine Model: Often equipped with the Hyundai D4HB (or Cummins equivalent depending on the region/tier).
Engine Power: ~70 kW (94 hp) at 2,300 rpm.
Transmission: Power shift transmission with 2 speeds forward and 2 speeds reverse.
Brakes: Oil-cooled disc brakes (standard) for virtually maintenance-free operation and superior stopping power.

Physical Dimensions

Length to Fork Face: ~3,130 mm.
Overall Width: ~1,450 mm.
Turning Radius: ~2,870 mm.
Standard Lift Height: 3,000 mm (with various mast options up to 7,000 mm).

Key Features of the 9-Series

Load Indicator: An onboard sensor measures the weight of the load, and a warning sounds if the capacity is exceeded.
Auto Deck: To prevent accidental rolling, the machine can be set to automatically apply the parking brake.
Operator Comfort: Features a “floating” cab design to reduce vibration, a full-color LCD monitor, and an adjustable suspension seat.
Machine Management: Includes a PIN-code starter to prevent unauthorized use and adjustable speed limits for warehouse safety.
Pro Tip: If you are operating in a tight warehouse, keep an eye on that 2.8-meter turning radius—it’s agile for its size, but still needs breathing room compared to the 2.5-ton models.
