Hyundai Forklift 50DA-9 | 5 ton

Description

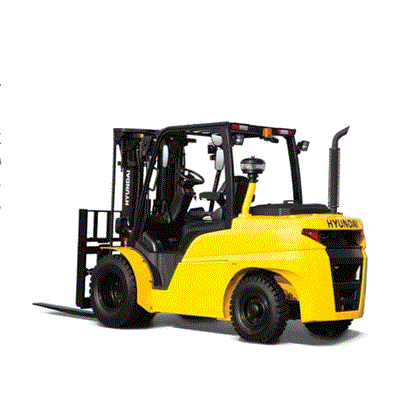

Hyundai Forklift 50DA-9 | 5 ton

The Hyundai 50DA-9 is a powerhouse in the 5-ton diesel forklift category, known for its high-performance Hyundai D4CC engine and a focus on operator ergonomics.
It’s a “workhorse” designed for heavy-duty industrial applications like timber, concrete, and heavy manufacturing.
Here is the breakdown of the technical specifications for the 5.0-ton model.

Engine & Performance

The heart of the 50DA-9 is built for fuel efficiency and low emissions while maintaining high torque at low speeds.
Feature Specification;
Engine Model Hyundai D4CC (Turbocharged).
Engine Power 74.3 hp (55.4 kW) @ 2,200 rpm.
Max Torque 33.6 kg·m @ 1,600 rpm.
Displacement 2,933 cc.
Fuel Tank Capacity 100 Liters.

Physical Dimensions & Capacity

This unit balances a heavy lifting capacity with a relatively compact footprint for its class.
Rated Capacity: 5,000 kg (at 600 mm load center).
>Overall Length (to face of forks): 3,345 mm.
>Overall Width: 1,444 mm.
>Overall Height (to top of overhead guard): 2,330 mm.
Turning Radius: 2,985 mm.
Standard Lift Height: 3,000 mm (options up to 7,000 mm available).

Key Features of the 9-Series

The “-9” series represents Hyundai’s “Premium” line, which includes several smart upgrades:
Load Indicator: An optional but common integrated scale that helps prevent overloading by showing the weight on the LCD monitor.
Auto-Parking Brake: The hydraulic parking brake engages automatically when the engine stops or the operator leaves the seat.
OPSS (Operator Presence Sensing System): Disables mast tilting, lifting, and lowering if the operator is not in the seat.
Clutch Cut-off System: Allows for faster engine speeds during lifting by disengaging the transmission via the brake pedal.

Maintenance & Durability

Wet Disc Brakes: Virtually maintenance-free and enclosed to prevent contamination from dust or water.
Tilting Cabin: The cab can be tilted (on some configurations) or features wide-opening hoods for easy access to the engine and filters.
Large LCD Monitor: Provides real-time diagnostics and service interval reminders.
Note: Performance can vary slightly depending on the mast type (Simple, Duplex, or Triplex) and whether you are using solid or pneumatic tires.
