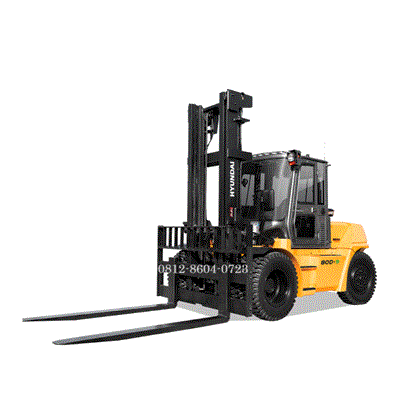

Hyundai Forklift 80D-9 | 8 ton

Description

Hyundai Forklift 80D-9 | 8 ton

The Hyundai 80D-9 is a heavy-duty powerhouse known for its durability and advanced ergonomics.
It belongs to Hyundai’s 9-series, which focuses on fuel efficiency and operator comfort without sacrificing raw lifting power.
Here are the key specifications for the 8 Tonne 80D-9 model:

Engine & Performance

At the heart of this machine is a high-torque engine designed to meet stringent emission standards while providing consistent power.

Feature Specification

Engine Model Cummins QSF3.8 (Stage IV / Tier 4 Final).
Engine Type Turbocharged, 4-Cylinder Diesel.
Power Output 102 hp (76 kW) @ 2,200 rpm.
Maximum Torque 470 Nm @ 1,600 rpm.
Travel Speed (Full Load) 24.3 km/h.
Gradeability (Loaded) 35.6%.

Lifting & Dimensions

The 80D-9 is engineered for stability when handling large, bulky loads like timber, steel, or heavy machinery.
Rated Capacity: 8,000 kg (at 600 mm load center).
Standard Lift Height: 3,000 mm (Options available up to 7,000 mm).
Mast Tilt Angle: 15° Forward / 12° Backward.
Overall Width: 2,194 mm.
Turning Radius: 3,660 mm.
Fork Dimensions: 1,350 mm x 180 mm x 70 mm (LxWxT).

Operator Comfort & Safety

The “9-series” cab is often compared to a premium car interior. It’s designed to reduce fatigue during long shifts.
Load Indicator: A digital system that monitors the weight of the load and alerts the driver of overloads.
OPSS (Operator Presence Sensing System): Disables mast lifting and tilting if the operator is not in the seat.
Advanced Display: A 5.6-inch color LCD monitor showing real-time fuel consumption, maintenance alerts, and a rearview camera feed.
Ergonomics: Adjustable suspension seat, tilting steering column, and centralized switches.

Hydraulic & Brake Systems

Brakes: Oil-cooled disc brakes (virtually maintenance-free compared to shoe brakes).
Hydraulics: Large-capacity tandem gear pump with a high-flow control valve for smooth, precise lifting.
Pro Tip: The 80D-9 features an “Engine Auto-Stop” function. You can set it to turn the engine off after a specific period of idling, which can significantly reduce your total fuel costs over the year.
