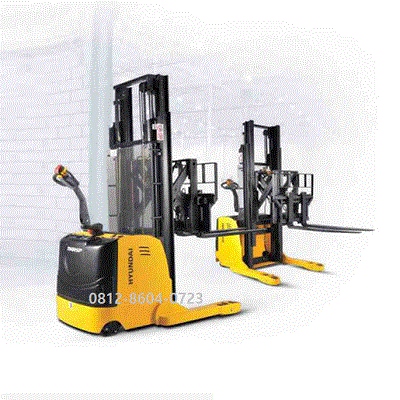

Hyundai Pallet Stacker 15ERSP | 1.5 ton

Description

Hyundai Pallet Stacker 15ERSP | 1.5 ton

The Hyundai 15ERSP is an electric stand-on (rider platform) pallet stacker designed for efficient material handling in narrow aisles and medium-to-long distance warehouse transport.
It is known for its AC drive technology and ergonomic “rider” design.
Below are the key technical specifications for the 1.5-ton unit:

Core Specifications

Model: 15ERSP.
Load Capacity: 1,500 kg (1.5 ton).
Load Center: 600 mm (standard) / 500 mm (some regional variants).
Operator Type: Stand-on Rider (Platform).
Drive Unit: Electric (AC Drive Motor).

Performance & Motor

Travel Speed (Unladen/Laden): Approx. 5.8 – 6.0 km/h.
Drive Motor: 1.5 kW (AC).
Lift Motor: 2.2 kW – 3.2 kW (depending on mast configuration).
Steering: Electric Power Steering (EPS) is typically standard or a primary option on the “ERSP” series.
Braking: Electromagnetic / Regenerative braking.

Dimensions & Maneuverability

Turning Radius: Approx. 1,580 mm – 1,660 mm (compact for narrow aisles).
Standard Lift Height: 3,000 mm (3 meters), though options often range up to 4,500 mm or higher.
Lowered Fork Height: ~85 mm.
Fork Dimensions: Standard 540 mm or 685 mm (Width) x 1,150 mm (Length).
Aisle Width (1000×1200 pallet): Requires approximately 2,400 mm – 2,500 mm for right-angle stacking.

Battery & Weight

Battery Voltage/Capacity: 24V / 210Ah – 300Ah (Lead-acid or Li-ion options).
Service Weight: Approx. 1,200 kg – 1,300 kg (including battery, varies by mast).

Key Features

Automatic Deceleration: Sensors reduce speed automatically when forks are lifted above 1.8m for safety.
Proportional Lifting: High-precision control for smooth lifting and lowering of sensitive loads.
Ergonomics: Foldable platform with side protective arms to safeguard the operator during travel.
Serviceability: CANbus technology simplifies troubleshooting and reduces wiring complexity.
Note: Capacities may be subject to “derating” at higher lift heights. Always refer to the specific load chart plate on your unit before lifting heavy loads to maximum height.
