Hyundai Pallet Stacker 15EST | 1.5 ton

Description

Hyundai Pallet Stacker 15EST | 1.5 ton

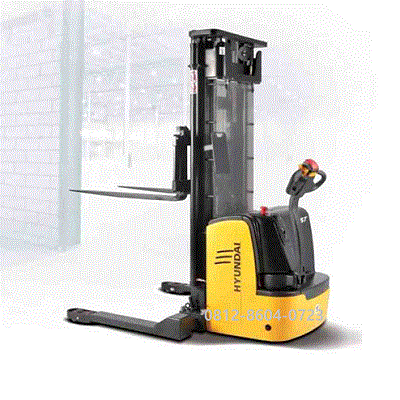

The Hyundai 15EST is an electric straddle-type pallet stacker designed for high-efficiency indoor material handling.
It is particularly valued for its compact turning radius and AC motor technology, which provides better energy efficiency and lower maintenance compared to older DC models.
Below are the technical specifications for the 1.5-ton unit:

Core Specifications

Model 15EST.
Load Capacity 1,500 kg (1.5 Ton).
Load Center 600 mm.
Lift Height Standard 3,000 mm (options up to 4,500 mm available).
Power Type Electric (Battery).
Operator Type Pedestrian (Walkie).

Performance & Motor

Travel Speed (Laden/Unladen): 5.8 / 6.0 km/h.
Lifting Speed (Laden/Unladen): 0.14 / 0.23 m/s.
Descending Speed (Laden/Unladen): 0.39 / 0.26 m/s.
Drive Motor: 1.5 kW (AC).
Lift Motor: 3.2 kW.
Gradeability (Laden/Unladen): 8% / 15%.
Braking System: Electromagnetic regenerative braking.

Dimensions & Maneuverability

Turning Radius: 1,612 mm.
Overall Length: 1,985 mm.
Overall Width: 1,170 mm – 1,560 mm (Adjustable straddle legs).
Fork Dimensions: 40 / 100 / 1070 mm (Thickness/Width/Length).
Aisle Width (1000×1200 pallet): ~2,480 mm.

Battery & Weight

Voltage/Capacity: 24V / 300Ah.
Battery Weight: Approx. 260 kg.
Total Service Weight: Approx. 1,090 kg to 1,250 kg (depending on mast height).

Key Features

AC Control System: Eliminates directional contactors, reducing maintenance needs.
Side-Way Battery: Features a roll-out system for quick battery changes during multi-shift operations.
Safety Tech: Includes an emergency reverse “belly switch” on the tiller, an emergency power disconnect, and a “Turtle Mode” for precise maneuvering in tight spaces.
Proportional Lift: Allows for smooth, controlled lifting and lowering of fragile loads.
Note: The load capacity typically derates as the lift height increases. For example, at heights above 2,500 mm, the maximum safe load will be less than the rated 1,500 kg.
