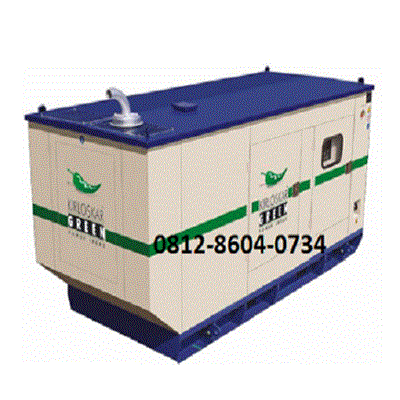

Kirloskar Genset KG25AS | 25 kVA

Description

Kirloskar Genset KG25AS | 25 kVA
BELIALAT.COM support penjualan unit, parts, service, rental, maintenance contract, overhaul, reconditioned Kirloskar Genset KG25AS | 25 kVA

Specifications

Brand : Kirloskar
Model : Silent type
Type : KG25AS

Generataor

Prime power output (PRP) kVA / kW : 25/20
Standby power output (ESP)  kVA/kW : 26.5/21.0

Fuel tank capacity – Open type Liters : 65
Fuel tank capacity – Silent type Liters : 65

Fuel consumption * PRP L/Hr 75% / 100% : 4.7/6.4
Sound level at 7m silent dB(A) : 70

Dimension (LxWxH) – open type cm : 144 x 97 x 133
Dimension (LxWxH) – silent type cm : 197 x 111 x 163

Dry weight – Open (Net) kg : 790
Dry weight – Silent (Net) kg : 1060

Engine

Make/Model : Kirloskar/HA394
Engine output prime power  hp : 32

Nomor of cylinder & configuration : 3 – inline
Bore x stroke mm : 100 x 120

Type : 4 Stroke

Displacement liters : 2.82
Aspiration : Natural

Starting system : 12 Volt
Governor : Mechanical

Lubricant oil sump capacity liters : 9
Coolant capacity liters : 12

Alternator

Make ( Brand )  : Standford
Model : PI144E1/PI144G1

Type : Brushless

Number of bearing : Single
Insulation class / temperature rise at ambient 40°  deg : H/125°

Wires : 12
Ingress protection : IP23

AVR Model : AS480
Excitation : Self excited

Voltage regulation % : +/-1%
